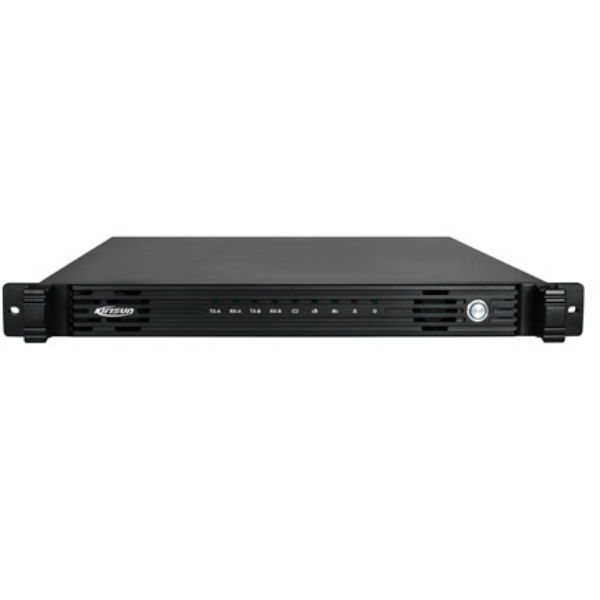

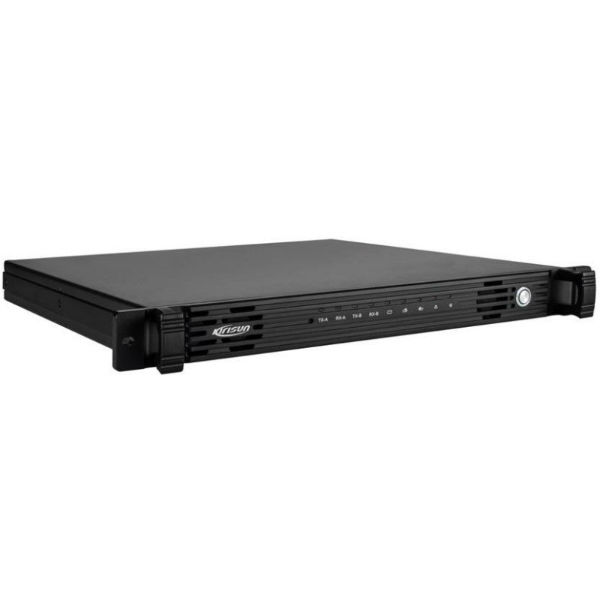

Kirisun DR600 DMR Digital Repeater

Features

Frequency Range
VHF: 136-174MHz 5~45 Watt UHF-A: 350-400 MHZ 5~40 Watt UHF-B: 400-470 MHZ 5~40 Watt

Outstanding Heat Dissipation
The unique cooling design combines a built-in heat pipe and four fans design ensuring very efficient heat dissipation, preventing the repeater from over-heating in high output power mode.

Smart Digital-Analog auto-detection
DR600 can be configured to analog, digital, or mixed mode. When configured to mixed mode, the repeater can dynamically switch between analog and digital depending on the type of call it receives.

Accessory Expansion
DR600 supports third party development via a rear port of the repeater. This is achieved via the pin control through the repeater ports. SIP and AIS protocol supported for easy expansion.

Multi-tone Decode
It supports decoding up to a maximum of 8 CTCSS/DCS in analog mode, and it is up to 16 CTC/DCS groups can be selected, allowing more talking groups to chare one repeater.

AIS/SIP Interface
It provides AIS/SIP second development interface, allowing dispatch, telephone system and other facilities to be developed by the third party.

Remote Monitor and Diagnosis
It supports remote monitor and diagnosis of repeater status by the network.

IP Connecting
IP connection is a function that enables repeaters in different areas to switch data, voice, and packets over a TCP/IP based network.

LED Indicator
9 LED indicators on the front of the panel enable you to identify the repeater status clearly.

Tier3 Upgradable
The advanced features can be upgraded to your existing DR600 repeaters by software without purchasing a new one. By software upgrade, the repeater can be used as a DMR Tier2 repeater or DMR Tier3 transceiver.

Power
Dc Powered (12V) 12.5/24 kHz Channel Spacing

• VHF: 136-174MHz 5~45 Watt
• UHF-A: 350-400 MHZ 5~40 Watt
• UHF-B: 400-470 MHZ 5~40 Watt
• UHF-C: 450-520 MHZ 5~40 Watt
