Discontinued

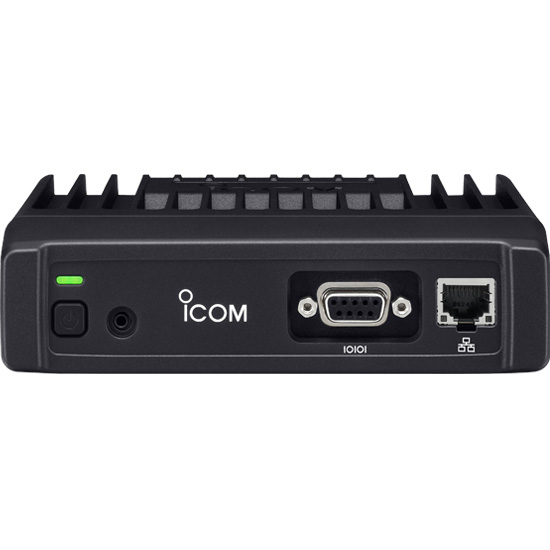

General Purpose Transparent Data Modem
STANDARD PACKAGE INCLUDES
DC power cable
Mounting bracket kit
Warranty: 2 years
Application Examples
- Farm vehicle management
- Utilities (water works/electricity meters)
- Airport ground vehicle management
- Various gate control applications
- Oil (pipelines/well drilling) management
- Road/highway construction traffic management
- Weather/environment monitoring
- Traffic monitoring systems
Features
- 9600bps (at 12.5kHz) and 4800bps (at 6.25kHz) data mode programmable
- RS-232 and RS-232 + Ethernet versions
- Fast data transfer using 4-level FSK modulation suitable for real-time data monitoring
- 25W, 10W and 2.5W three-step RF output power
- BNC antenna connector
- Individual, group and all calls
- Data encryption function (500 codes)
- Memory channel selection via PC control command
- Optional CS-F5120DD, Programming Software and OPC-2218LU, USB type Programming Cable
Application Image
![F5122DD Applications]()
| General |
|---|
|
Frequency coverage
|
IC-F5122DD
136–174MHz
IC-F6122DD
400–470MHz
|
| Number of channels |
128 channels |
|
Type of emission
|
8K30F1D, 4K00F1D (4FSK)
|
| Channel spacing |
12.5/6.25kHz
|
| Over-the-air data rate |
9600/4800bps |
| Power supply requirement |
13.6V DC |
Current drain (approx.)
Tx High (25W)
Rx Standby |
6A
400mA |
| Antenna impedance |
50Ω (BNC) |
| Operating temperature range |
–30°C to ?60°C ; –22°F to +60°F
|
Dimensions (W×H×D)
(Projections not included) |
150×40×134.7mm;
5.91×1.57×5.3 in
|
| Weight (approx.) |
900g; 2.0lb |
Ethernet interface
(Depending on version) |
10BASE-T (Full/Half-duplex), 100BASE-TX (Half-duplex)
with Auto-negotiation function |
| RS-232 connection rate |
1200, 2400, 4800, 9600, 19200, 38400 baud |
| Transmitter |
|---|
| Output power (at 13.6V DC) |
25W, 10W, 2.5W (Hi, L2, L1)
|
| Spurious emissions |
70dB min. |
| FSK error |
2.5% typ. (DN/DVN) |
| Frequency stability |
±1.0ppm |
| Receiver |
|---|
| Sensitivity (at 1% BER) |
–4dBμV/–5dBμV emf typ. (DN/DVN) |
| Adjacent channel selectivity |
64dB/60dB typ. (DN/DVN) |
| Spurious response |
76dB/70dB typ. (DN/DVN) |
| Intermodulation |
68dB/66dB typ. (DN/DVN) |
