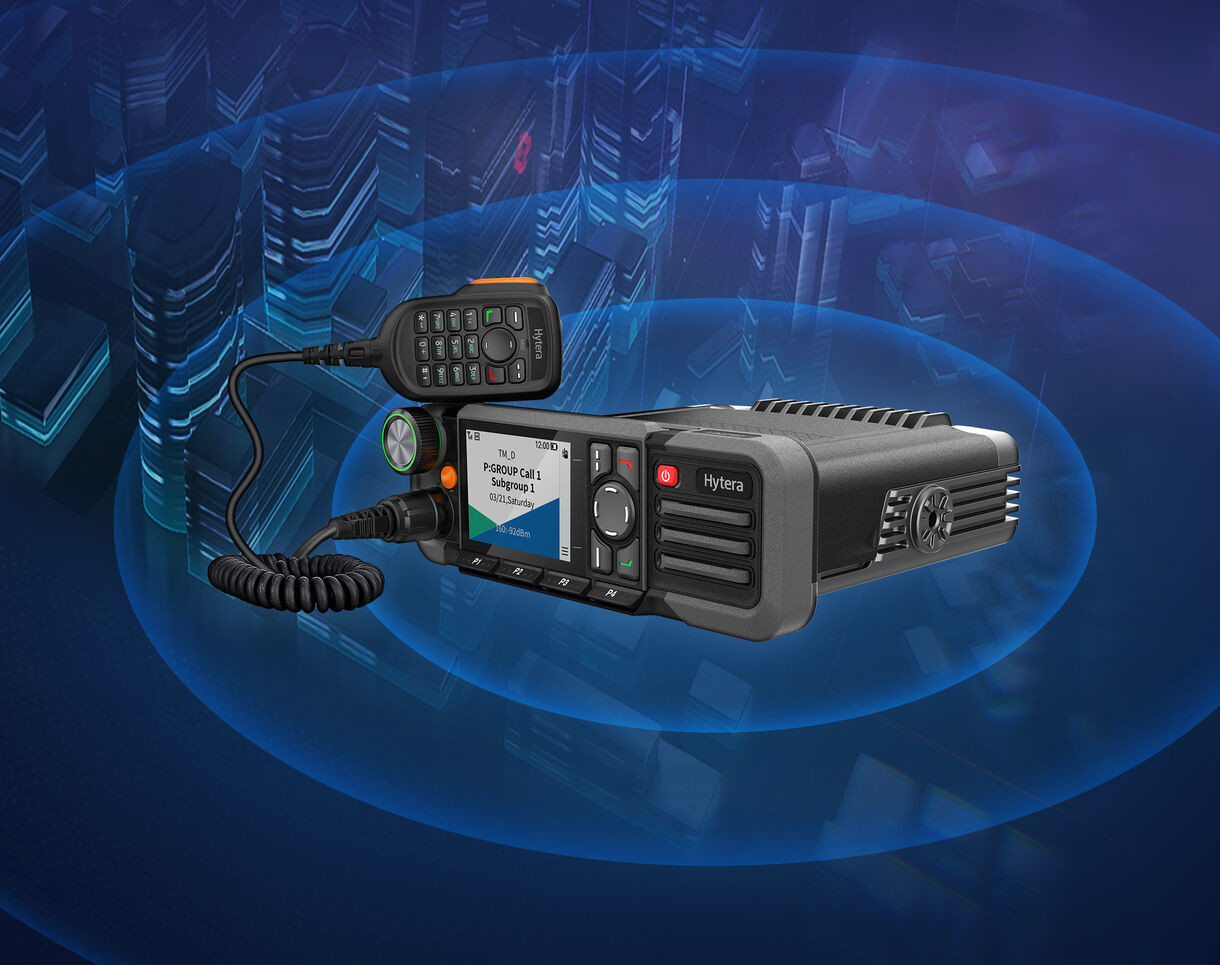

Hytera HM782 DMR Digital Mobile Two Way Radio

$750.80 each

MhZ Version
2 Year Extended Warranty
Hytera Advanced Digital Encryption
Hytera DMR Tier III Trunking Upgrade
Hytera License For Audio Recording

+

The Hytera HM782 H-Series DMR mobile radios are the next generation in creative style and functionality that elevates the industry standard in professional two-way radios. State-of-the-art in digital mobile radio communications, providing a more efficient experience with loud and clear audio, intuitive user interface, gateway functionality, and extended range.

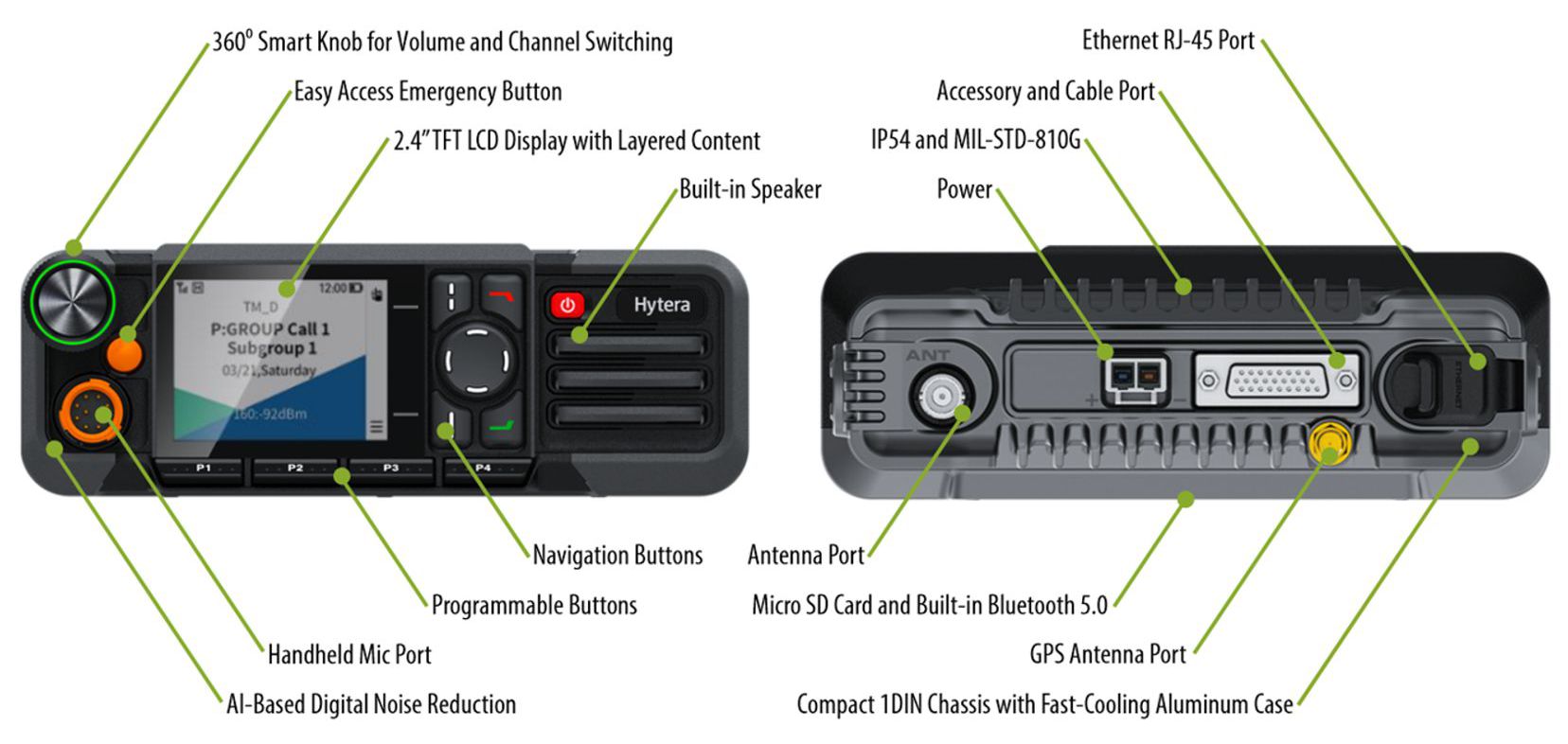

The HP782 features a 2.4" TFD-LCD display and full keypad that support a wide variety of functions, GPS, and industry-leading audio performance.

Standard Package Includes:

  • Palm Microphone
  • Mounting Bracket
  • Power Cord
  • Three Year Warranty

Features

LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through an optimized forward-facing loudspeaker and AI-based voice enhancement with a deep learning ability that can accurately extract voice from noise in real-time and decreases unwanted background noises as loud as 30db.

ENHANCED WORKER SAFETY
The HM782 radios are designed for worker safety with an easy access emergency button, emergency call, and priority interrupt. Lone Worker prompts the user to press a key at preset intervals to indicate they are safe. Large tactile knobs and piano-style buttons provide easy access that keeps eyes on the road.

DURABLE AND RUGGED
IP54 compliant for water and dust ingress, and MIL-STD- 810 G for shock and humidity.

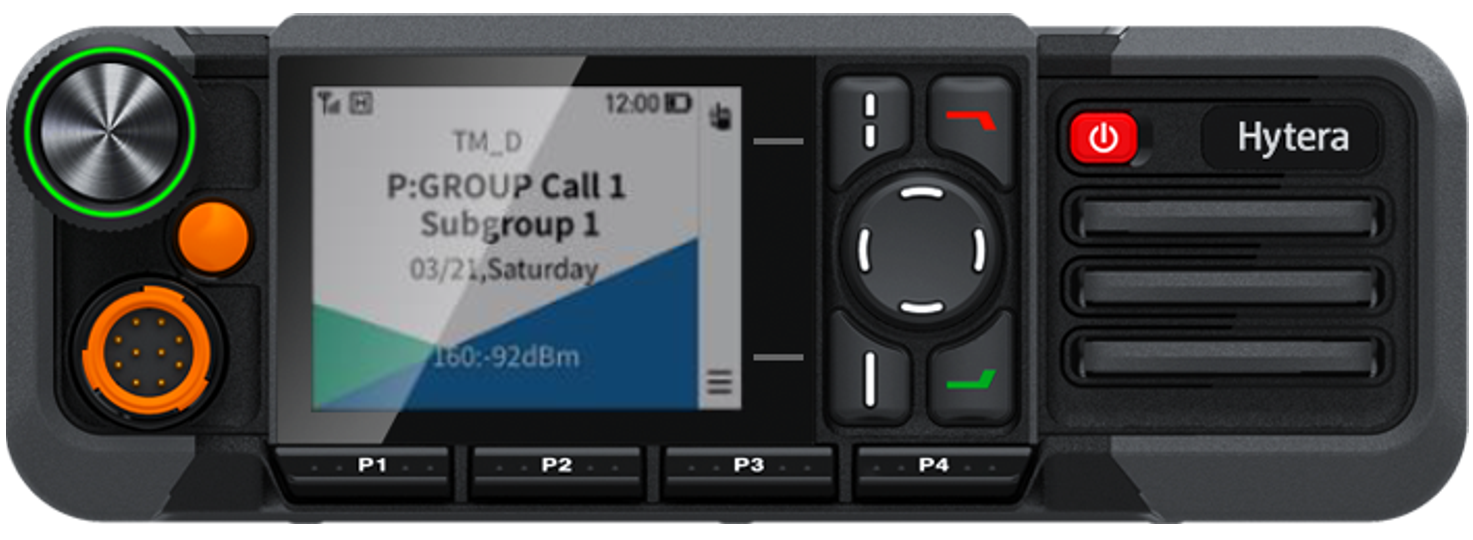

CLEAR AND BRIGHT DISPLAY
The HM782 features a 2.4-inch, 240x300 HD TFT LCD display with an intuitive six-grid navigation interface with large types and icons. The display supports 262,000 colors and is clearly visible in bright sunlight.

ENHANCED GPS LOCATION TRACKING
The HM782 reports current location information to other radios, the dispatcher, or third-party applications in real-time, enhancing the efficiency of visualized dispatch applications. GPS data is transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware costs.

HIGHER SECURITY
The HM782 supports Digital End-to-End and Over-the-Air Encryption for voice and data. Hardware encryption is implemented through a built-in encryption card. Advanced software encryption uses the ARC4 and AES encryption algorithms.

MULTI-SYSTEM FLEXIBILITY
The HM782 can be deployed in Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.

GREATER CALLING FLEXIBILITY
The HM782 supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Calls (broadcast call to all radios, transmit only), and Telephone Calls (with connectivity to PSTN, PABX or SIP networks).

SINGLE FREQUENCY REPEATER
SFR mode on the HM782 enables repeater operation on a radio channel that transmits on one slot and receives on another slot using the same frequency. SFR mode extends coverage in field operations with long distances and variable terrain.

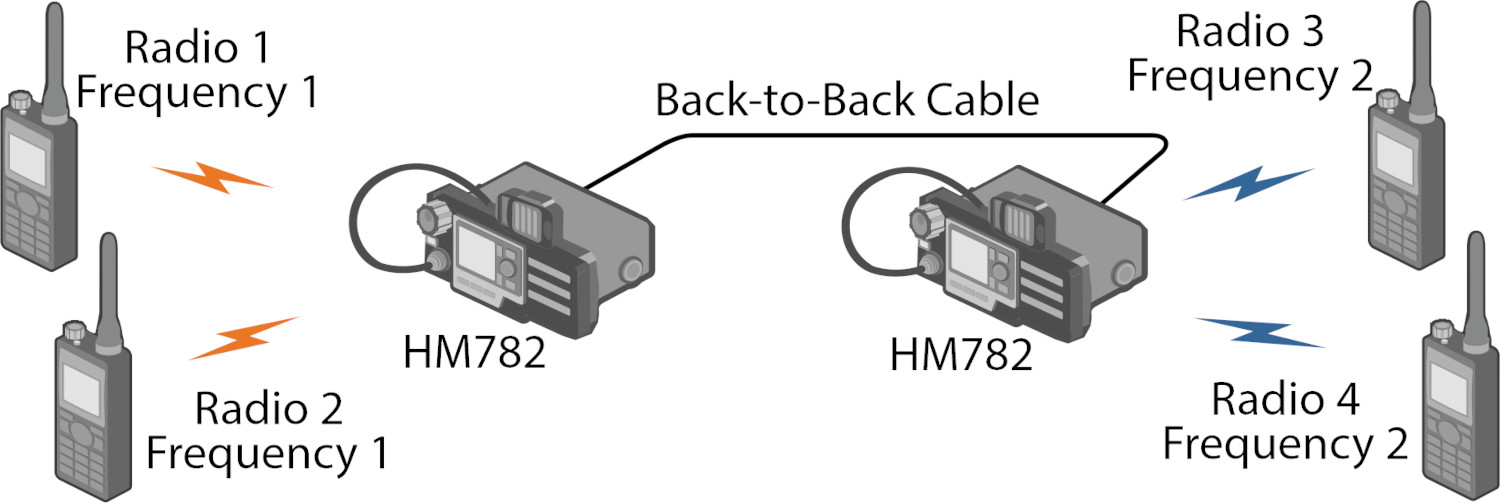

BACK-TO-BACK
The HM782 can be deployed Back-to-Back to enable communication between analog and digital radios, or radios with different frequencies. Two HM782 radios can be deployed Back-to-Back, or one radio and a repeater can be used.

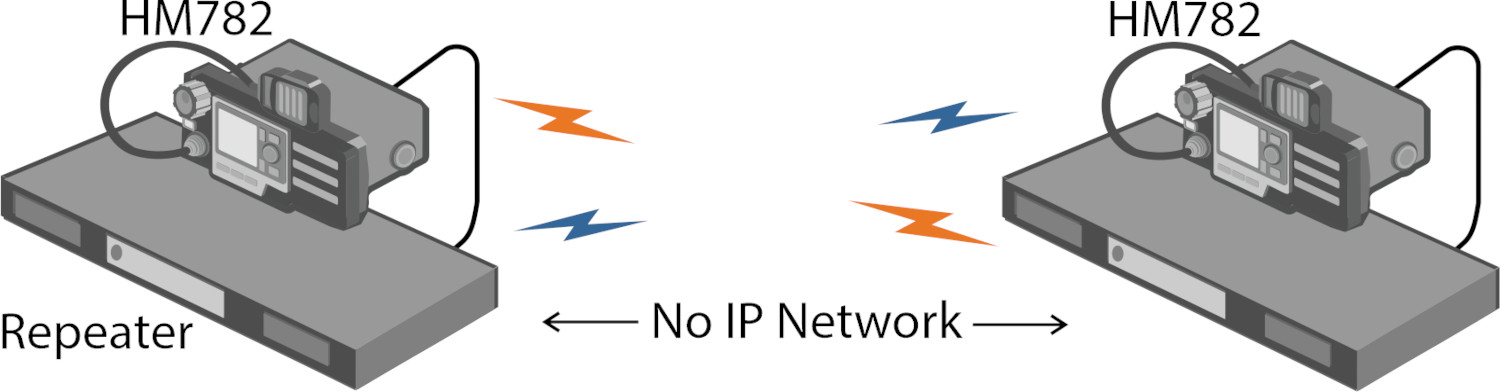

WIRELESS LINK
In situations where a wired IP network is unavailable between two repeaters, two HM782 radios using different frequencies can provide a wireless link between the repeaters.

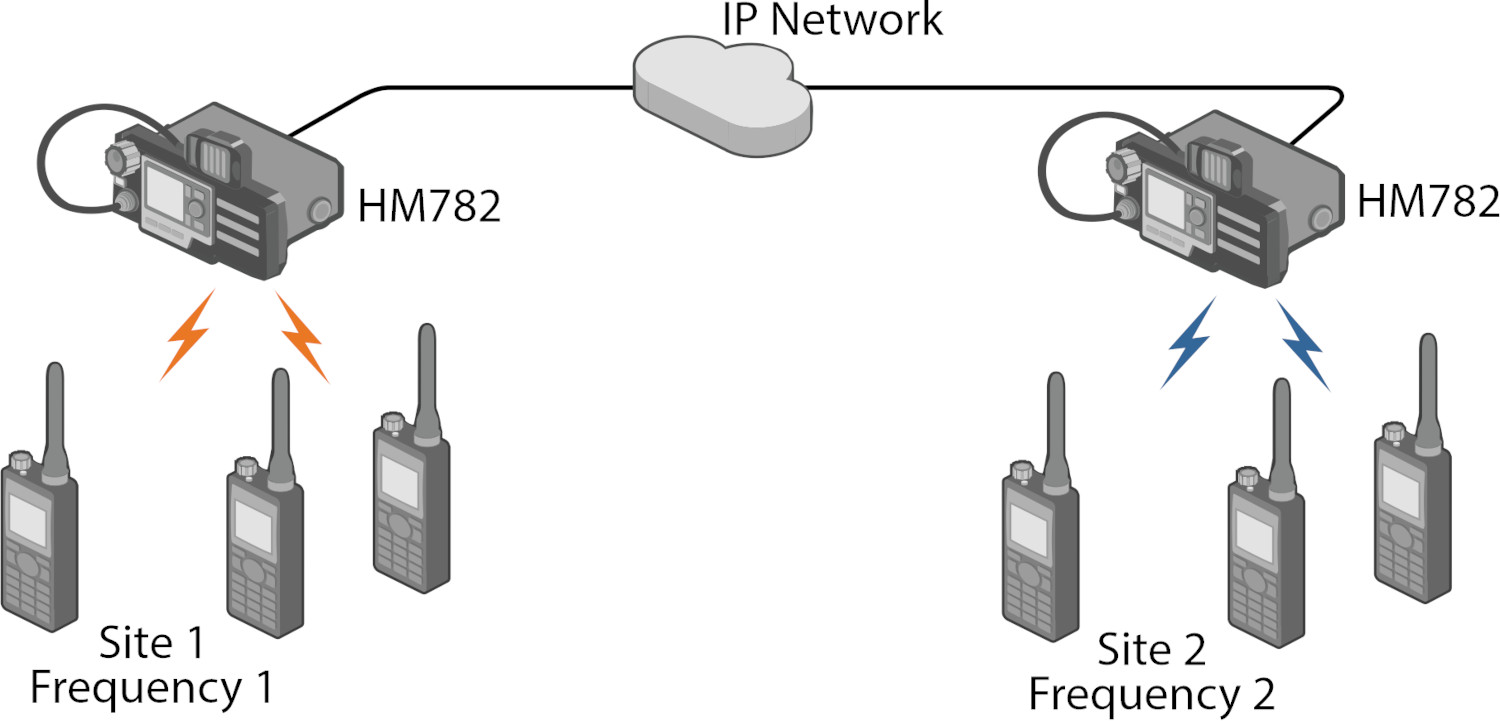

IP MULTI-SITE CONNECT
Multiple HM782 mobile radios can be connected to an Ethernet/IP network to provide a reliable and cost-effective method to connect remote radio sites and extend coverage areas. IP Transit can connect radio sites with analog or digital radios, and radios with different frequencies.

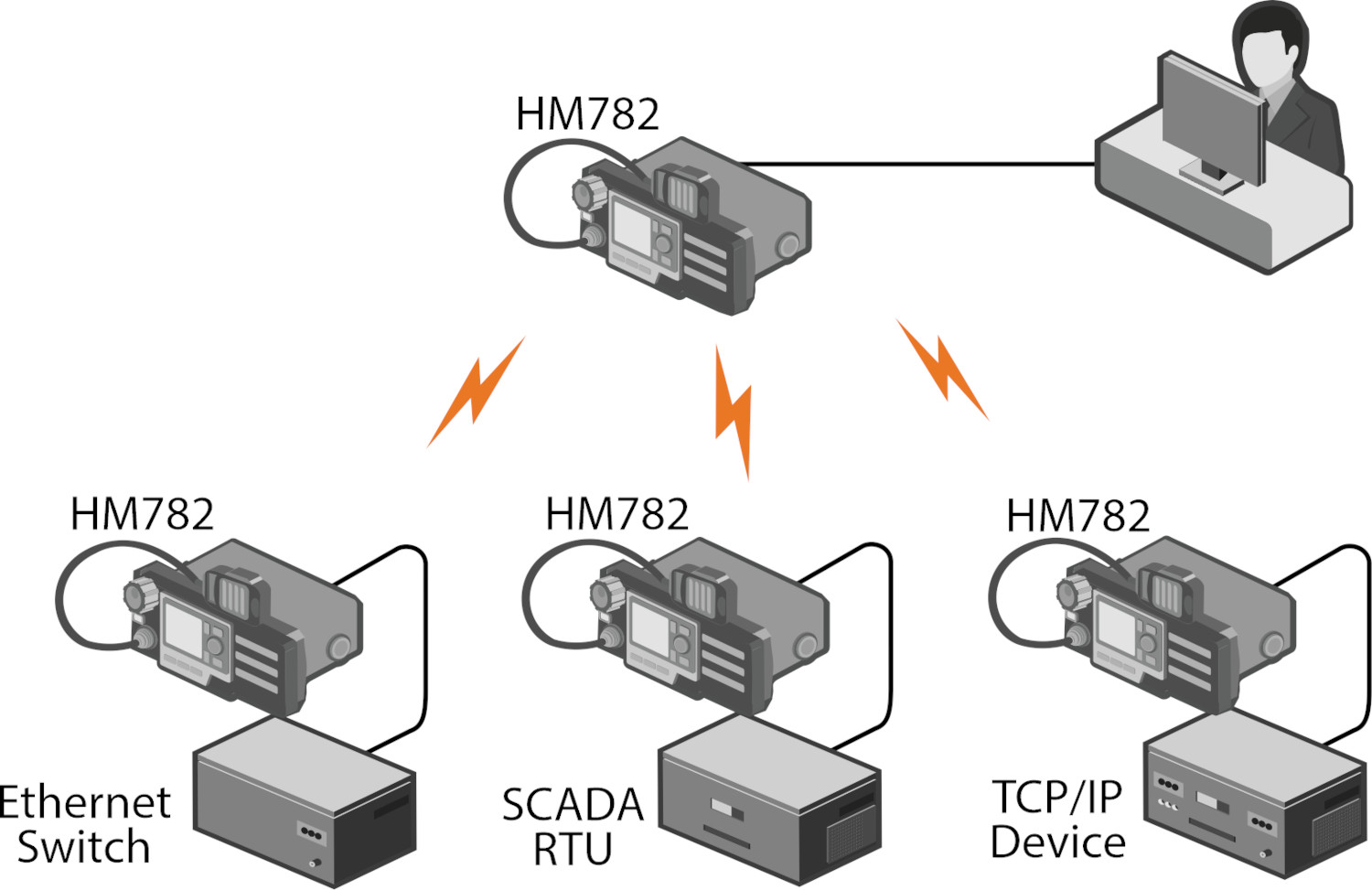

CLARITY TRANSMISSION
The Clarity Transmission feature provides a wireless data path between remote network devices and a central network management station. HM782 radios function as compact gateway devices and provide wireless channels that transparently transmit data without any modification.

Specifications

Frequency Range
UHF:350-470 MHz, VHF 136-174 MHz
Channel Capacity
1,024 ( 512 Analog, 512 Digital)
Zone Capacity
64 Zones with 256 Channels per Zone
Channel Spacing
25/12.5/20KHz
Operating Voltage
13.6V ±15%
Current Drain
Standby: <0.5A Receive: <2.0A Transmit: 1W <3A, 5W <4A, 25W <8A, 45/50W <12A
Weight
56.1 oz
Dimensions
2 7/16” x 6 31/32” x 7 1/16” (61.5 x 177 x 179mm)
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω

Receiver

Sensitivity (Digital)
0.18μV / BER 5%
Sensitivity (Analog)
0.16μV (Typical) (12dB SIN AD) 0.18μV (12dB SIN AD)
Adjacent Selectivity
TIA-603: This email address is being protected from spambots. You need JavaScript enabled to view it., 70dB@20/25kHz ETSI: This email address is being protected from spambots. You need JavaScript enabled to view it., 70dB@20/25kHz>
Spurious Response Rejection
TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
Inter-modulation
TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
Hum & Noise
This email address is being protected from spambots. You need JavaScript enabled to view it., 43dB@20kHz, 45dB@25kHz>
Rated Audio Power Output
Internal (20 Ohm load) 3W, 8W Max External (8 Ohm load) 8W, 20W Max
Rated Audio Distortion
≤3%
Audio Response
+1 ~ -3dB
Conducted Spurious Emission
<-57dBm

Transmitter

RF Power Output
Low Power: UHF: 1-25W, VHF: 5-25W High Power: UHF: 1-45W, VHF: 5-50W
FM Modulation
11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
4FSK Digital Modulation
12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm <1GHz, -30dBm >1GHz
Modulation Limiting
±2.5KHz @ 12.5KHz ±5.0KHz @ 25KHz
FM Hum & Noise
60dB @ 12.5KHz, 70dB @ 25/20KHz
Audio Response
+1 to -3dB
Audio Distortion
≤3%
Digital Vocoder Type
AMBE+2TM

Environmental

Operating Temperature
-30°C~ +60°C
Storage Temperature
-40°C~ +85°C
ESD
IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air)
Dustproof & Waterproof
IP54 Standard
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration
Per MIL-STD-810 C/D/E/F/G Standard
