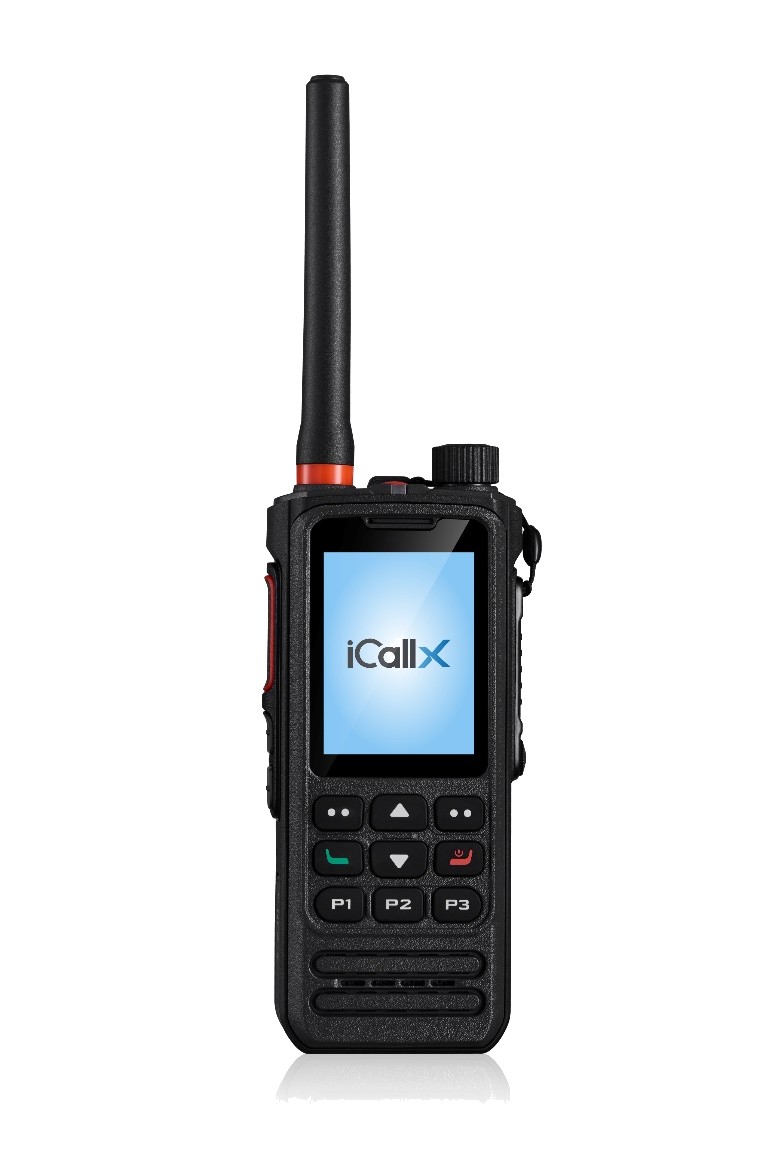

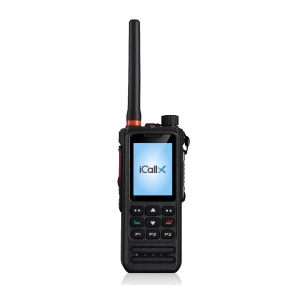

Kirisun TD66 DMR, Wi-Fi & PoC Portable Two-Way Radio TD66
Kirisun TD66 – The Ultimate Connected Two-Way Radio
The Kirisun TD66 redefines portable communication by combining three powerful technologies in a single, rugged device. Whether you're coordinating a large-scale event, managing a warehouse team, or running field operations, the TD60 keeps your crew connected — locally and globally.
With DMR digital radio for crystal-clear voice quality, Wi-Fi connectivity for seamless network integration, and Push-to-Cell (PoC) for unlimited communication range over cellular networks, the TD66 is built for teams that can't afford to lose contact.
Compact, reliable, and feature-rich, the Kirisun TD66 is the smart choice for modern professional communications.
Standard Package Includes:
- 3000 mAh Li-Ion Battery
- Standard Charger
- Antenna
- Belt Clip
- Wrist Strap
- 2 Year Warranty
- User Guide
Features
All-in-one Device
Combines 4G PoC, DMR Tier II and Tier III, and Analog into a single device. No need to carry multiple separate handsets for accessing voice, data, and more.
Automatic Switch
TD60 / TD66 can automatically switch between the DMR network and the LTE network. Registering with both networks using the same ID, it can always select the optimal one to deliver smooth and reliable voice communications.
Display
Limited Display
Flexible Call Features
TD60 / TD66 provides various call types, such as private call/group call / all call/alarm call. It supports real-time storage of recordings to local and one-click playback or download online recordings through the dispatch platform.
Extraordinary User Experience
Its 2.4-inch color HD screen incorporates translucent display technology, which allows TD60 / TD66 to provide excellent readability even in bright sunlight.
Easy to Operate
TD60 / TD66 uses an ergonomic design and has three programmable buttons on the radio to facilitate fast implementation of required functions, thus improving communication efficiency.
Multiple Alarm Modes
Multiple alarm modes are built into TD60 / TD66 to help keep personnel safe. Users can count on immediate SOS alerts being sent out to supervisors and/or dispatchers when alarm conditions are met.
GPS Positioning
Built-in high-precision GPS positioning function, cooperate with the dispatching system, to achieve real-time positioning query and tracking of your team members.
Transmit Interrupt
Enables users to interrupt another radio call to deliver critical communication exactly when and where it’s needed.
Rugged & Reliable
Certified with an IP68 rating and conforming to the MIL-STD-810G standard, TD60 / TD66 is built rugged to withstand water, dust, shock, extreme temperatures, etc. The unwavering physical durability of the TD60 / TD66 is what ensures it can continue to perform as expected even in the harshest environmental conditions.
Long Shift Life Battery
The TD60 / TD66 is designed with a powerful 3000 mAh Lithium-Ion battery to deliver up to 16 hours of operation in digital mode.
Versatile Data & Emergency Services
In addition to conventional communication service, TD60 / TD66 provides rich data service and selectable functions, including Text Message, Scan, Emergency, Man Down, VOX, and LoneWorker.
Secure Communication
TD60 / TD66 provides basic and enhanced encryption capability, including ARC4, DES, and 256-bit AES encryption algorithm. It ensures secure communication on voice calls and data transfer between team members.
Specification
Wireless Data Communication
DMR/Analog
350-400 MHz, 400-470 MHz
LTE FDD
B1 / B3 / B5 / B7 / B8 / B20 / B28
LTE TDD
B38 / B40 / B41
CDMA
BC0
WCDMA
B1 / B5 / B8
TD-SCDMA
B34 / B39
GSM
850 / 900 / 1800 / 1900 MHz
WLAN
2.4G & 5G
NFC
Communication distance ＞ 1cm
BT
BT 5.2
Positioning
GPS
Transmitter
RF Power Output
1 W / 4 W
FM Modulation
11K0F3E @ 12.5 kHz / 14K0F3E @ 20 kHz /
16K0F3E @ 25 kHz
4FSK Digital Modulation
12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination of 12.5 kHz Voice and Data: 7K60F1W
Modulation Limiting
±2.5 kHz @ 12.5 kHz / ±4.0 kHz @ 20 kHz /
±5.0 kHz @ 25 kHz
FM Hum and Noise
40 dB @ 12.5 kHz, 45 dB @ 20 / 25 kHz
Adjacent Channel Power
60 dB @ 12.5 kHz, 70 dB @ 20 / 25 kHz
Audio Response
+1 to -3 dB
Audio Distortion
≤3% (typical)
Digital Vocoder Type
AMBE+2™
Audio Output
2 W
Receiver
Sensitivity
Analog 0.18 μV (12dB SINAD) (typical)
Digital 0.18 μV / BER 5% (typical)
Selectivity
60 dB @ 12.5 kHz, 70 dB @ 20 / 25 kHz (TIA-603)
60 dB @ 12.5kHz, 70 dB @ 20 / 25 kHz (ETSI)
Intermodulation
70 dB @ 12.5 kHz / 25 kHz (TIA-603)
65 dB @ 12.5 kHz / 25 kHz (ETSI)
Spurious Response Rejection
70 dB @ 12.5 / 20 / 25 kHz (TIA-603)
70 dB @ 12.5 / 20 / 25 kHz (ETSI)
Hum and Noise
40 dB @ 12.5 kHz, 45 dB @ 20 / 25 kHz
Rated Audio Power Output
2W
Rated Audio Distortion
≤ 3% (typical)
Audio Response
+1 to -3 dB
Conducted Spurious Emission
-57 dBm @ 1 GHz,
-47 dBm @ 1 GHz
Environment
Dust and Water Proofing
IP68
Shock and Vibration
MIL-STD-810 G
ESD
IEC 61000-4-2 (Level 4), ±8kV (Contact), ±15kV (Air)
Operating Temperature
-20°C - +60°C
Storage Temperature
-40°C - +85°C
Humidity
MIL-STD-810G, ≤ +65°C, 95%RH
General
Dimensions (H x W x D)
5.4in * 2.2in * 1.44in
Channel Capacity
DMR: 1024
Channel Spacing
12.5 kHz / 20 kHz / 25kHz
Operating Voltage
7.4V DC±20%
Display
2.4 Inch HD Screen
Standard Battery
3000 mAh Li-polymer, 7.5V(Rated)
Frequency Stability
±0.5 ppm
Weight
0.89 lb
