Icom FR5300 - FR6300 Series IDAS Digital & Analog 50W Repeater

$2,273.00 each
MhZ Version


Two Channels in One Box Repeater, Compatible with Affordable Digital Simulcast!

Warranty: 2 Years


Completely New CPU/FPGA Platform
The IC-FR5300 series is the second generation IDAS™ Repeater, keeping system compatibility with the original IC-FR5000 series and continuing its unique package. It looks the same as the IC-FR5000, but a new CPU/FPGA platform is used. The IC-FR5300 series provides digital simulcast system capability and ±0.1 ppm high-frequency stability with a 1 pps reference signal from the GNSS antenna.

System Scalability
The IC-FR5300 series can be easily upgraded by installing an optional UC-FR5300 Network/controller board and software provided with a CF card. Depending on the communication density and coverage, your radio system can grow from a single site to a simulcast system or multi-site trunking* system, to match your communication needs.
* Compatible IDAS radio terminals are required for multi-site trunking.

System Optional Network/Controller Board

  • Simulcast Conventional UC-FR5300 #14 (Supplied with a CF-FR5300SC) and UX-241 GNSS antenna
  • Multi-site Conventional UC-FR5300 #12 (Supplied with a CF-FR5000MC)
  • Single site Trunking UC-FR5300 #11
  • Multi-site Trunking UC-FR5300 #13 (Supplied with a CF-FR5000MT)

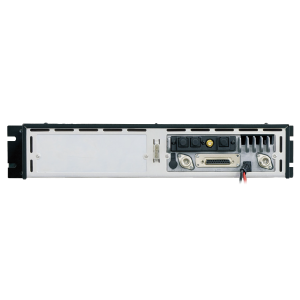

D-SUB 25-Pin Accessory Connector
The IC-FR5300 series has a programmable D-SUB 25-pin accessory connector for connecting external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.

50W Output at 50% Duty Cycle or 25W 100% Duty Cycle Operation*
Employing a high performance power amplifier, the IC-FR5300 series provides a reliable 100% duty cycle operation at 25W output. When operated at the high power setting of 50W, the repeater operates with a 50% duty cycle.

* 25 W output power depending on the repeater version. Ambient temperature: 25°CAmbient temperature: 25°C

50W Output at 100% Duty Cycle or 100W 50% Duty Cycle Operation with Optional Power Amplifier*
When need higher power, the optional UR-PA5000/UR-PA6000 series power amplifier provides 100W output power with a 50% duty cycle and 50W output with a 100% duty cycle. * Ambient temperature: 25°C

Capable of Installing Two RF modules in One Chassis
The IC-FR5300 series has an internal space for installing another RF unit. Two RF modules* can be installed and operated independently. LEDs on the front panel show the status of both channels. * Optional UR-FR5300/UR-FR6300 required.

Digital/Analog Mixed Mode and Multiple Tone-Group Using CTCSS, DTCS Tone and RAN
The IC-FR5300 series can receive both analog and digital modes on a channel, and transmit either mode, depending on the programming. It decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per-channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/code.

32 Channel Capacity and 5 Programmable Buttons
The 12-digit alphanumeric display, 5 programmable buttons, 32 memory channels, and internal speaker enable you to use the repeater as a simple base station, or to check repeater activity. The LCD shows a variety of text and code information.

IP Remote Maintenance
When the IC-FR5300 series is connected to an IP network through the optional UC-FR5300 network/controller board, PC programming and IP address setting can be made from a remote location. The SNMP traps and Syslog can be sent to your manager for remote monitoring.

Other Features

  • 19-inch rack mount 2U height low profile
  • Receiver voting function improves talkback capability of radio terminals in the field
  • RC-FS10 remote communicator software works as a simple dispatch station to communicate with radio terminals through the repeater
  • CW ID transmitter
  • PTT priority setting (Local Microphone, external PTT, or repeater operation)
  • 5-Tone decoder* (* For analog mode only)
  • DTMF encoder/decoder
  • Low voltage alert


Frequency coverage
136-174 MHz , 400-470 MHz, 450-512 MHz (USA)

Number of channels
32 channels / 1 zone

Channel spacing
(Varies according to version) 6.25/12.5/25 or 7.5/15/30 kHz

Type of emission
16K0F3E*1 (25 kHz),
11K0F3E (12.5/15 kHz, USA),
8K50F3E (12.5 kHz),
4K00F1E/F1D (6.25/7.5 kHz)

Power supply requirement
13.6 V DC (USA, CAN, EXP)

Current drain
(at 13.6V DC) Tx High
15.0 A maximum (at 50 W)
8.0 A maximum (at 25 W)

Rx Stand-by
500 mA (FAN OFF)

Max. audio
1900 mA

(projections not included; W×H×D) IC-FR5300/IC-FR6300
483 × 88 × 260 mm, 19.0 × 3.5 × 10.2 in

Weight (approx.) IC-FR5300/IC-FR6300
5.78 kg, 12.7 lb

Operating temperature range
-30℃ to +60℃, –22 °F to +140 °F (USA, CAN, EXP)

*1 25 kHz bandwidth is not available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25 kHz bandwidth.


RF output power (Hi, L2, L1)
(Varies according to version)
50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions)

Spurious emissions
80 dB typ. (TIA-603)
0.25 μW (≤ 1 GHz), 1.00 μW (> 1 GHz) (EN301 166, EN300 086)

Frequency stability
±1.0 ppm or less
±0.1 ppm or less (corrected using GNSS)

Audio harmonic distortion
0.9% typ. (AF 1kHz 40% deviation)(TIA-603)
1.1% typ. (AF 1kHz 40% deviation)(EN 300 086)

0.8% typ. (AF 1kHz 40% deviation)(TIA-603)
0.8% typ. (AF 1kHz 40% deviation)(EN 300 086)

FM Hum and Noise
83 dB typ. (W)
77 dB typ. (N)

72 dB typ. (W)
67 dB typ. (N)


Sensitivity Digital (1% BER)
–4.0 dBμV (0.32 μV) emf typ. (EN301 166)

–3.5 dBμV (0.33 μV) emf typ. (EN301 166)

Analog (12 dB SINAD)
–119 dBm (0.25 μV) typ. (TIA-603)

–117 dBm (0.32 μV) typ. (TIA-603)

Analog (20 dB SINAD)
–4.0/–4.0/–1.0 dBμV emf typ. (W/M/N)(EN300 086)

–3.0/–3.0/0.0 dBμV emf typ. (W/M/N)(EN300 086)

Adjacent channel selectivity
66 dB typ. (EN301 166)
63 dB typ. (EN301 166)

85/80 dB typ. (W/N)(TIA-603)
84/83/78 dB typ. (W/M/N)(EN300 086)

80/56 dB typ. (W/N)(TIA-603)
78/78/74 dB typ. (W/M/N)(EN300 086)

Spurious response rejection
87 dBμV emf typ. (EN301 166)
85 dBμV emf typ. (EN301 166)

85 dB typ.(TIA-603)
81 dB typ. (EN300 086)

84 dB typ.(TIA-603)
81 dB typ. (EN300 086)

Intermodulation rejection
78 dBμV emf typ. (EN301 166)
78 dBμV emf typ. (EN301 166)

81/81 dB typ. (W/N)(TIA-603)
75/74/73 dB typ. (W/M/N)(EN300 086)

80/80 dB typ. (W/N)(TIA-603)
74/74/73 dB typ. (W/M/N)(EN300 086)

AF output power
3.9 W typ. (at 5% distortion with a 4Ω load)
