Rugged, Loud, and Reliable

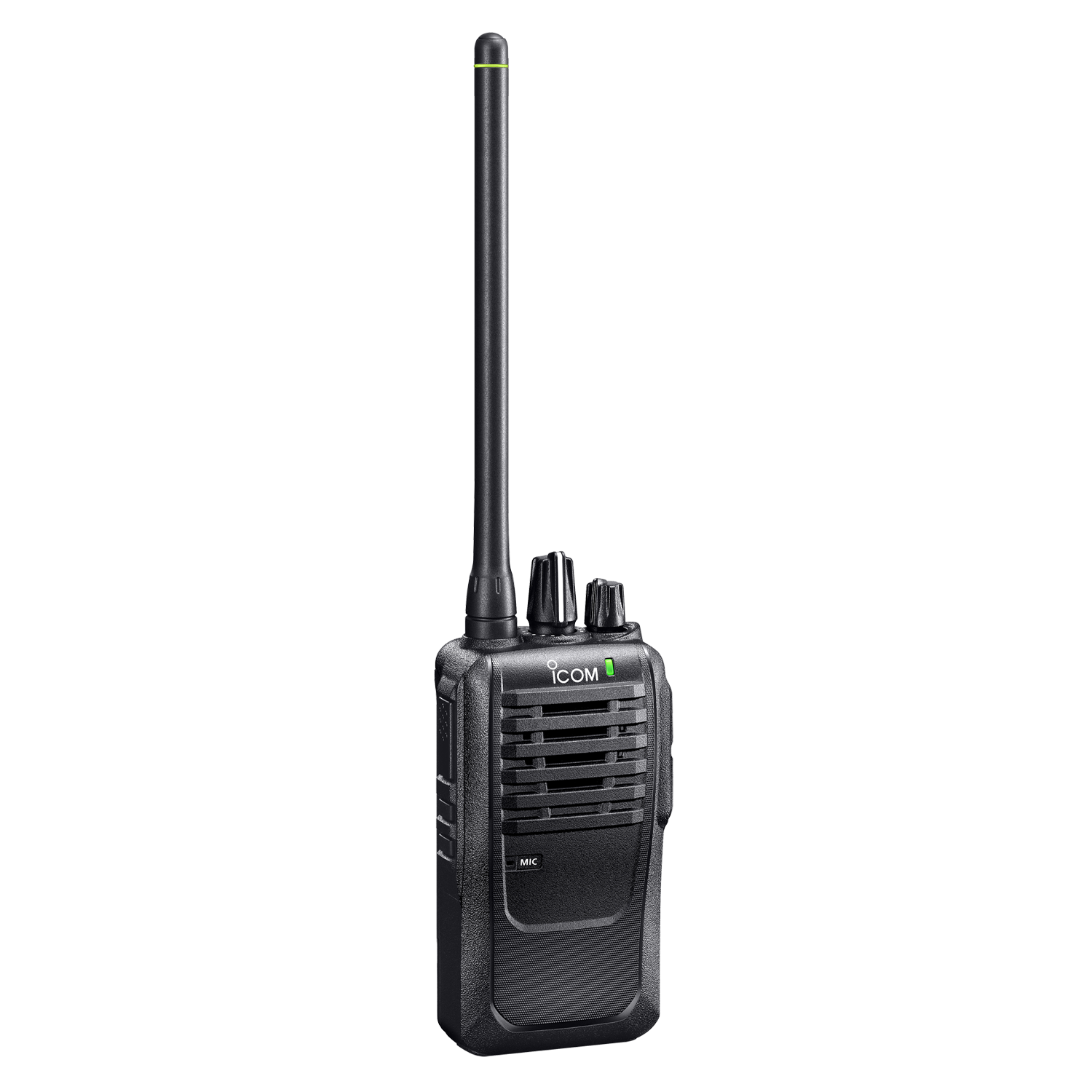

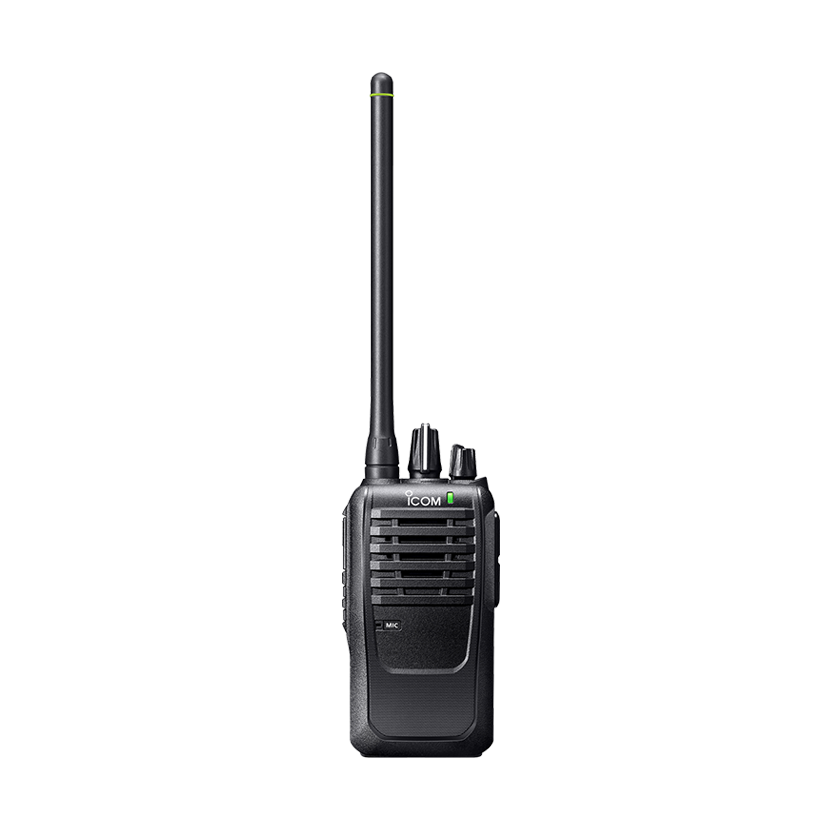

For basic operations, the V3MR provides an entry-level license-free Multi-Use Radio Service (MURS) option. Everything to start communications comes ready to use straight out of the box, including a lithium battery, antenna, and charger. This simple and professional grade two-way radio is fit for hospitality, construction, personal use, and more.
STANDARD PACKAGE INCLUDES
Battery (BP-298)
Belt Clip (MB-124)
Antenna (FASC28V)
Rapid Charger (BC-240)
AC Adapter (BC-242)
Warranty: 2-Year
IP54 and MIL-STD 810G Tough and Rugged Body
While the radio is a compact unit with a height of only 111 mm, the radio is tested for dust protection and water resistance equivalent to IP54 and 11 categories of MILSTD- 810 environmental tests. In short, the IC-V3MR is built rugged!
1500 mW (typ.) Powerful Audio with BTL Amplifier
The radio provides 1500 mW (typ.)* loud and clear audio with an Icom custom high power handling capacity speaker. Clear communication is available even in noisy environments. * Typical with internal speaker
Optional 1500mW Speaker-Microphone, HM-222HLWP
The combination of the optional HM-222HLWP and the IC-V3MR also provides 1500 mW(typ.) * loud audio from the attached speaker-microphone. * Typical with optional speaker-microphone, HM-222HLWP
2 Watts Output and All 5 MURS Frequencies for Business Use
The IC-V3MR is a professional-grade, license-free MURS radio is ready for any kind of operation. Take advantage of the large communication range*: up to 250,000 square feet in buildings, 20 floors, and up to two miles in a traditional worksite. This radio is suited for service, education, health, tourism, personal use, and more! * Ranges may differ depending on the operating environment.
High Capacity Li-ion Battery 24 hours Operational Time (5/5/90 duty)
A low power consumption design and the supplied 2250 mAh (typ.) Lithium-Ion battery allow use of the radio for more than 24 hours*. *5:5:90 duty ratio for transmit: receive: stand-by (with power save function)
Other Features
- VOX (Voice Operated Transmit) function
- MDC PTT ID transmit
- CTCSS Tone and DTCS code
- DTMF functions
- Emergency and Lone Worker functions
- 2-step low battery beep
- Customizable settings with PC programming software (free download)
- FCC Certified Communication
- Range Communication range may differ depending on the operating environment or weather conditions, etc.
Do I need an FCC License - The V3MR does not require an FCC license. FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies. We can help with the FCC application process.
Usable Frequencies and (bandwidth) 151.820 MHz (11.25 kHz), 151.880 MHz (11.25 kHz),
151.940 MHz (11.25 kHz), 154.570 MHz (20.00 kHz),
154.600 MHz (20.00 kHz)
Number of Memory channels
16 ch
Transmit output power
2 W (High), 1 W (Mid), 0.5 W (Low)
Receiver sensitivity
0.25 μV (typical) for 12 dB SINAD
Squelch sensitivity
0.25 μV (typical) at squelch threshold point
Audio output power (at 5% distortion, 8 Ω load)
Internal SP 1.5 W (typical)
External SP 0.4 W (typical)
HM-222HLWP 1.5 W (typical)
Antenna impedance
50 Ω
Power supply Voltage
7.2 V DC
Current drain
Receive stand-by 75 mA
Receive max. audio 500 mA
Transmit (High) 0.9 A
Dimensions (Projections not included)
58 (W) × 111 (H) × 35.5 (D) mm,
2.3 (W) × 4.4 (H) × 1.4 (D) in (with BP-298)
Weight (Approximate) 265 g, 9.3 oz (with BP-298)
All stated specifications are subject to change without notice or obligation.
Measurements made in accordance with TIA-603.
