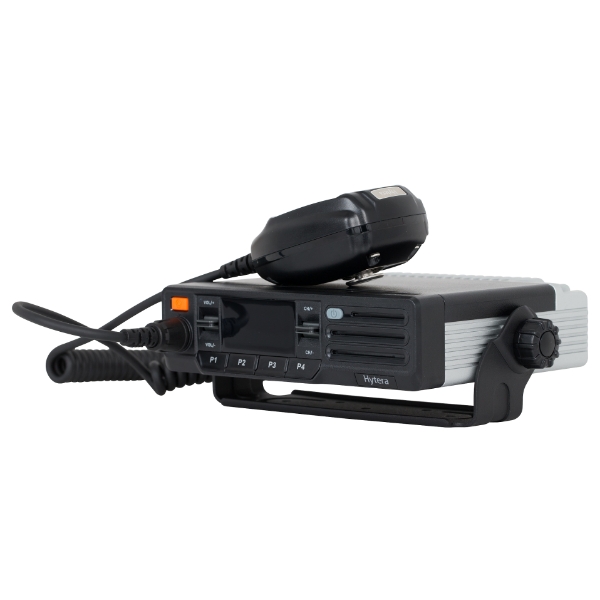

As a product built to the DMR standard, the Hytera MD612i delivers quality digital voice and data communications as well as all-around digital functions to increase your efficiency and enable you to be responsive to emergency situations. The radio can also be used as a control station to monitor and communicate with radio fleets from a desk.
Standard Package Includes:
- Palm Microphone
- Microphone, Hanger & Screws
- Mounting Bracket
- Power Cord
- Fuse
Clear Communication
With the latest audio processing technology and in-built speaker, the MD612i offers you outstanding audio quality in loud environments and near the boundary of radio coverage.
Clear Display
Large, clear easy-to-read display and 4 programmable buttons.
Pseudo Trunk
Several talk groups share the same frequency, and each of them can dynamically choose to use one of the slots to talk. This is a two-slot-trunked mode. While time slot 1 is busy, the MD612i will use time slot 2 to transmit.
Analog or Digital
You may configure both analog and digital channels. Users may utilize a mixed mode scan and switch between the two, making it simpler to migrate to digital.
Wattage
50 Watts
Programming - Radios are programmable and will require programming to work with an existing system. Software and programming cables are not included with the radio and must be purchased separately.
Do I need an FCC License - FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies. We can help with the FCC application process.
- Frequency Range
- VHF: 136-174 MHz
- Channel Capacity
- 48 analog, 48 digital (3 zones with 16 channels per zone)
- Digital Protocol
- ETSI-TS102 361-1,2 & 3
- Dimensions
- 6.45" x 1.7" x 5.9" (164 x 43 x 150mm)
- Weight
- 2.42 pounds (1.1kg)
- Display
- 2 digit LED
- Programmable Buttons
- 5
- Keypad
- NO
Environmental Specifications
- Operating Temperature
- -22°F to 140°F (-30°C to 60°C)
- Storage Temperature
- -40°F to 185°F (-40°C to 85°C)
- US Military Standard
- MIL-STD-810 G
- Dustproof & Waterproof
- IP54
Features
- RRS
- YES
- GPS
- Separate GPS adaptor and antenna
- Option Board
- NO
- Intrinsically Safe Option
- NO
- Bluetooth Audio
- NO
- Data Services via Bluetooth
- NO
- Stun / Unstun
- YES
- Remote Monitor
- YES
- Priority Interrupt
- YES
- IP Site Connect
- YES
- Roaming
- YES
- Telemetry
- NO
- 5 Tone Signalling
- NO
- 2 Tone Signalling
- NO
- VOX
- NO
- Priority Scan
- YES
- GPS SMS
- NO
- Vibration
- NO
- Emergency Mode
- YES
- Lone Worker
- NO
- Mandown
- NO
- Digital Encryption
- Basic encryption is standard (10, 32 & 64 character keys)
- Pseudo Trunking in DMO and RMO
- YES (Hytera patented technology)
- Voice Interrupt
- YES (TX Interrupt for voice call, emergency call, remote dekey, text message.)
- No of Contacts (Conventional)
- Digital 64 Analog 2-Tone NA Analog HDC1200 N/A Analog 5-Tone N/A
- Text Messaging
- 64 characters (pre-defined only)
- Quick Text Messages
- Up to 10 pre-programmed via CPS
- MPT1327 / 1343 Trunking
- NO
- Tier 3 Trunking
- NO
- XPT
- NO
- Mixed Mode Operation
- YES
- Full Duplex Calls
- NO
- Single Frequency Repeater
- NO
