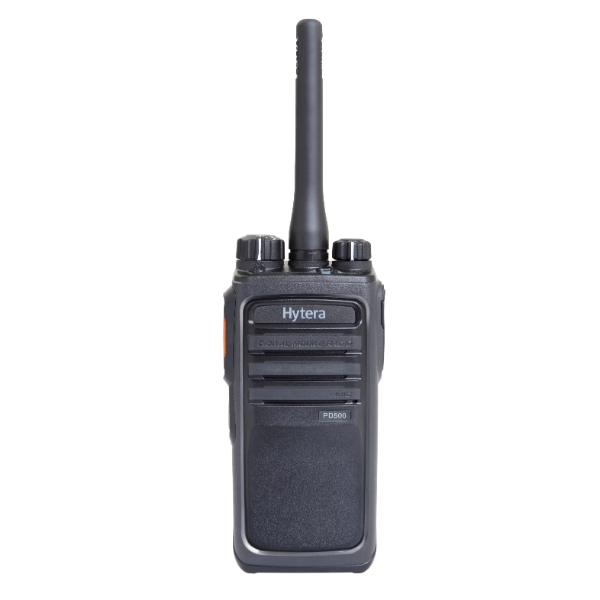

Hytera PD502i UL913 DMR Digital Portable Two Way Radio- Intrinsically Safe

Regular price: $582.10 Our price: $523.89 each
MhZ Version

2 Year Extended Warranty
Programming

+

Packed with functionality, the Hytera PD502i UL913 portable digital radio is an excellent entry into digital communications. Adding UL913 compliance makes the PD502i ideal for hazardous environments.

Standard Package Includes:

  • Battery (1500mAh Li-Ion)
  • Charger
  • Antenna
  • Belt Clip
  • Wrist Strap
  • User Guide

Features

Small, Sleek, Light
The size is 115 X 54 X 27mm, dual-color injection, and weight is 260g.

Long Battery Life
In digital mode, PD502i operates at least 16 hours under a duty cycle of 5-5-90.

Rugged & Reliable
It is compliant with MIL-STD-810 C/D/E/F/G standards.

One Touch Call/Text
Supports One Touch features that are comprised of Preprogrammed Text Messages, Voice Calls, and Supplementary Features.

Supplementary Features (optional)
The PD502i can decode radio enable, radio disable, and remote monitor, as well as Priority Interrupt.

Dual Mode (Analog & Digital)
Dual modes (analog & digital) operation ensures a smooth analog to digital migration.

Secure Communication
Provides basic digital encryption and Scrambler feature in analog mode.

Advanced Signaling
Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone, and 5-Tone, providing better integration into existing analog radio fleets.

DMRA Data Service
The data protocol is fully compliant with DMRA standard.

DMO True 2-Slot
In DMO Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.

Programming - Radios are programmable and will require programming to work with an existing system. Software and programming cables are not included with the radio and must be purchased separately.

Do I need an FCC License - FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies.  We can help with the FCC application process.

Specifications

Frequency Range
VHF: 136-174MHz UHF1: 400-470MHz UHF3: 350-400MHz
Channel Capacity
256 (16 zones with 16 channels per zone)
Digital Protocol
ETSI-TS102 361-1,2 & 3
Battery Life (5-5-90 Duty Cycle)
1500mAh: Analog 11 hours, Digital 16 hours
Dimensions (H x W x D)
4.25" x 2.12" x 1.37", 115 x 54 x 35 mm
Weight
10.5 oz, 298g (1500mAh Li-ion)
Display
NO
Keypad
NO
Programmable Buttons
1

Environmental Specifications

Dust and Water Intrusion
IP54
Operating Temperature (non-hazardous environment)
-22° F to 140° F (-30°C to +60°C)
Operating Temperature (hazardous environment)
-22° F to 131° F (-30°C to +55°C)
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Vibration
Per MIL-STD-810 C/D/E/F/G Standard

Features

GPS
NO
RRS
YES (V7.06.01.006 firmware)
Telemetry
NO
Bluetooth Audio
NO
Radio Check
YES (Decode Only)
Stun/Unstun
YES (Decode Only)
Alert Call
YES (Decode Only)
Remote Monitor
YES (Decode Only)
IP Site Connect
YES
Priority Interrupt
YES
5 Tone Signalling
YES
2 Tone Signalling
YES
HDC1200 Signalling
YES
DTMF (Phone Patch)
NO
Emergency Mode
YES (V7.06.01.06 firmware)
Lone Worker
YES (V7.06.01.06 firmware)
