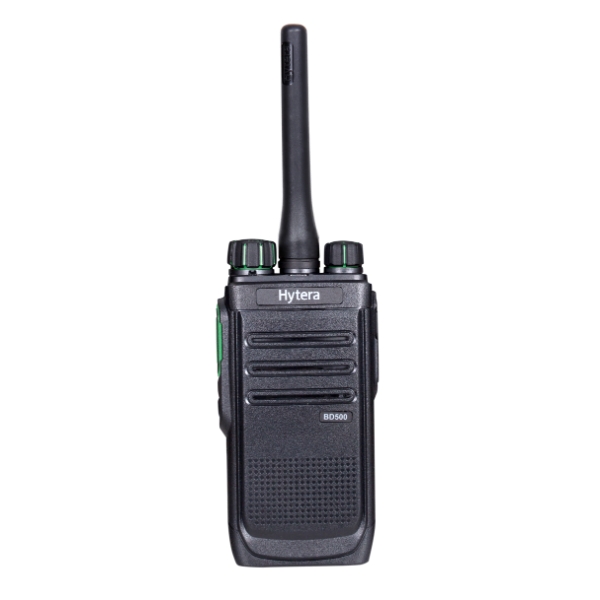

Hytera BD502i DMR Digital Portable Two Way Radio

$328.90 each
MhZ Version

2 Year Extended Warranty

+

Standard Package Includes:

  • 1500 mAh Li-Ion Battery
  • Belt Clip
  • Antenna
  • Charger
  • User Guide
  • Three Year Warranty

Features

RUGGED AND RELIABLE
The BD502i is designed and tested to meet Military Standards 810 C, D, E, F, and G, including temperature shock, vibration, high & low temperature, and humidity. IP54 dust- and water-proof design guarantees reliability in multiple environments. And based on TDMA technology, the radio can work longer, up to 22 hours in digital mode.

CLEAR VOICE
With digital encoding and correction technology, voice is transmitted much clearer without background noise, even from a rather far distance with better audio quality.

ANALOG & DIGITAL DUAL MODES
The BD502i can support both analog and digital modes on the same device. You can switch between two operation modes very easily and it helps you to communicate with analog radios.

ANALOG & DIGITAL AUTO-DETECT
The BD502i can detect the signal type when receiving a call, then automatically switches between analog mode and digital mode to get the voice out of the speaker. During the call hang time, the user can easily reply to the call by push-to-talk. This is a real migration technology from analog to digital.

LONG WORKING TIME
Based on TDMA technology, the BD502i in digital mode can work as long as 16 hours @ 1500mAh or 22 hours @2000mAh in 5-5-90 mode.

RELIABLE AND DURABLE
The BD502i is compliant with MIL-STD-810 C/D/E/F/G and IP54.

ANTI-INTERFERENCE
Adopted digital encoding and error correcting module, the BD502i has a better ability to avoid signal interference on the same frequency.

DMR SIGNALING
With DMR signaling, transmitting group calls, private calls, and all calls with PTT ID becomes quite easy.

REPEATER OPERATION
Utilize a DMR Tier II repeater to extend your communication range.

VOICE ANNOUNCEMENT
Channel number announcement helps you to switch channels quickly and correctly.

VOX
When using a VOX earpiece, this feature allows you to activate the microphone via speaking volume, and free your hand from PTT.

SCANNING
Allows the BD502i to listen to communication activities on other channels.

Specifications

Frequency range
UHF: 400-470 MHz VHF: 146-174 MHz
Channel capacity
48
Zone capacity
3
Channel spacing
25/12.5KHz
Operating voltage
3.7 V
Battery
1500Ah (Li-Ion) 2000Ah (Li-Ion)
Battery service life (5/5/90)
Analog: 12/16 hours (1500mAh) Digital:16/22 hours (2000mAh)
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Dimensions (H×W×D)
4.25" x 2.12" x 1.14", 108×54×29mm
Weight
8 oz. (with AN0435W09 and BL1506)
Display
BD502i has no display, BD552i has single line display

Transmitter

RF Power Output
VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W
FM Modulation
11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
4FSK Digital Modulation (Digital Emissions Designator)
12.5 kHz (data only): 7K60FXD 12.5 kHz (voice & data): 7K60FXW
Conducted/Radiated Emission
-36 dBm < 1 GHz -30 dBm > 1 GHz
Modulation limiting
±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz
FM Hum & Noise
40 dB at 12.5 kHz 45 dB at 25 kHz
Adjacent channel selectivity
60 dB at 12.5 kHz 70 dB at 25 kHz
Audio Response
+1 ~ -3dB
Audio Distortion
≤ 3%
Digital vocoder type
AMBE++

Receiver

Sensitivity (Digital)
0.22μV / BER 5%
Sensitivity (digital)
0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD)
Adjacent channel selectivityTIA-603
60dB @ 12.5KHz/70dB @ 25KHz
IntermodulationTIA-603
65dB @ 12.5/25KHz
Spurious response rejectionTIA-603
70dB @ 12.5/25KHz
Hum & Noise
40dB @ 12.5KHz 45dB @ 25KHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1 ~ -3dB
Conducted spurious emission
< -57 dBm

Environmental Specs

Operating temperature
-30 °C to +60 °C
Storage temperature
-40 °C to +85 °C
LED
IEC 61000-4-2 (level 4) ±8 kV (contact ) ±15 kV (air)
Dustproof & Waterproof
IP54 Standard
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration
Per MIL-STD-810 C/D/E/F/G Standard
