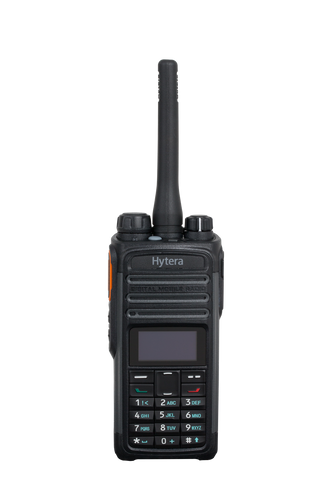

Hytera PD482i DMR Digital Portable Two Way Radio
Robust and reliable, the Hytera PD482i portable digital radio offers a simple communication solution, ideal for users operating in manufacturing, facilities management, or education environments.
Standard Package Includes:
- Battery (2000mAh Li-Ion)
- Charger
- Antenna
- Belt Clip
- Wrist Strap
- User Guide

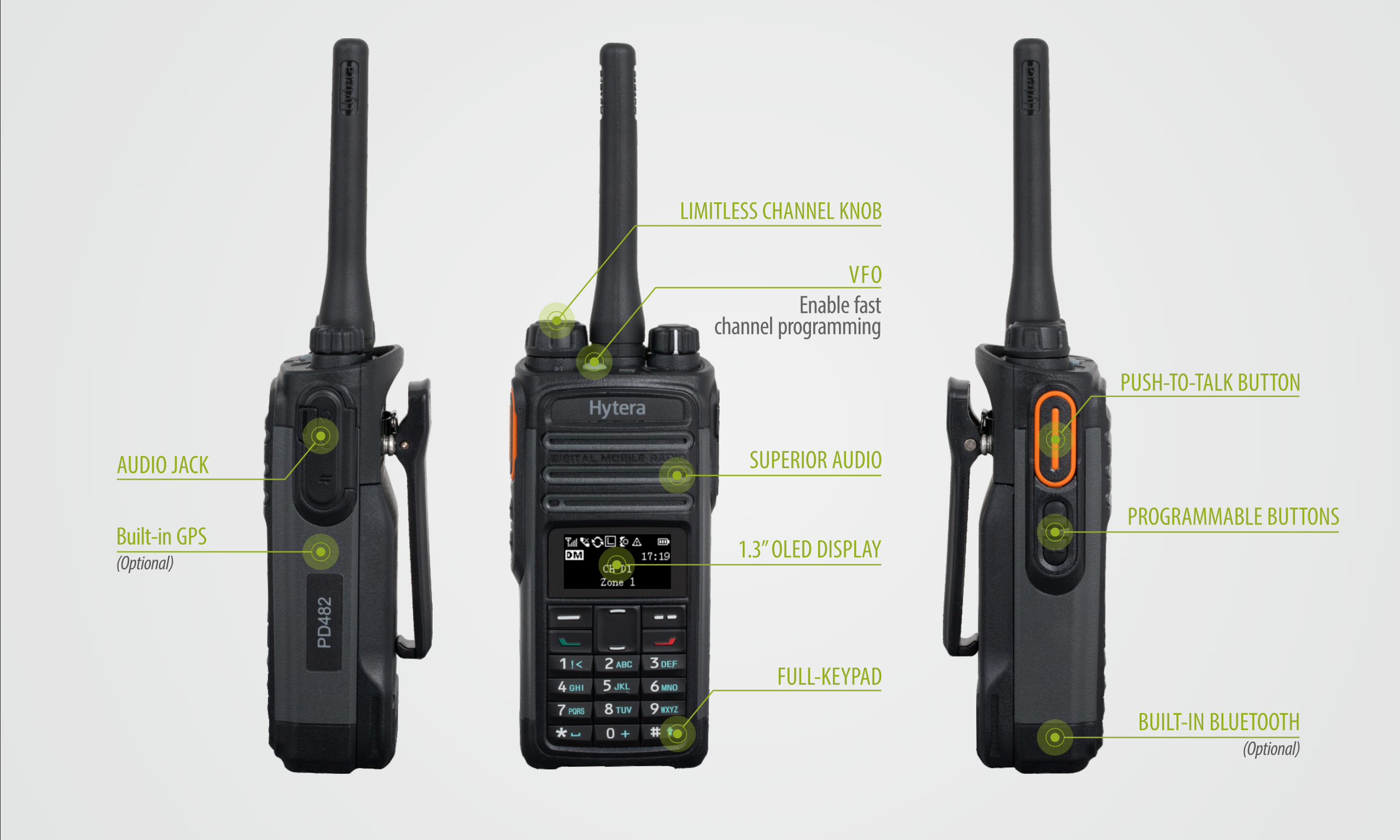

Features
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calls
HIGH-QUALITY AUDIO
An audio equalizer adjusts the low, mid, and high-frequency gain. Provides the best audio performance in noisy or quiet environments
LONG-LIFE BATTERY
Powerful Li-Ion 2000mAh battery delivers up to 22 hours of operation in digital mode and 16 hours in analog mode
RELIABLE AND DURABLE
Compliant with MIL-STD-810 G for impact strength and durability, and IP54 water and dust ingress
EMERGENCY ALARMS AND CALLING
Emergency Alarms can be sent to other radios via the one-touch programmable button
ANALOG & DIGITAL AUTO-DETECT
Simultaneously monitors analog and digital modes and automatically responds in each mode
ENCRYPTION
Ensures private and secure voice and data transmission
REAL-TIME CLOCK
Real-time display, call logs, GPS synchronization, and messaging
TEXT MESSAGING
Free-form text messaging with a full keypad. Stores up to ten pre-dedefined text messages
GPS POSITIONING
The built-in GPS enables real-time location tracking for dispatch applications (only on PD482i-G-BT models)
BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces and other wireless accessories (only on PD482i-G-BT models)
VOX
Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operation. Also supported on external earpiece and microphone accessories
ROAMING
Allows radios to seamlessly move between connected repeaters with uninterrupted voice transmission
PSEUDO TRUNK
This virtual trunking feature automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency
RADIO REGISTRATION SERVICE
RRS allows the PD482i to communicate with dispatch and unified communications applications
UPGRADE FEATURES (Optional)
PRIORITY INTERRUPT
Priority Interrupt allows a dispatcher to interrupt existing calls with important emergency information
REMOTE MONITOR
Remote Monitor allows a dispatcher to key the PTT button and listen in an emergency situation
STUN/REVIVE
Stun/Revive enables dispatch and other users to disable/enable a radio if it is stolen, lost, or used maliciously
Specifications
- Frequency Range
UHF: 350-470MHz VHF: 136-174MHz - Channel Capacity
256 Channels (128 Analog, 128 Digital) - Zone Capacity
16 Zones with 16 Channels per Zone - Channel Spacing
Analog: 12.5kHz / 20KHz / 25KHz Digital: 12.5kHz - Operational Voltage
7.4W - Battery
2000mAh (Li-Ion) Standard, 1500mAh Optional - Battery Life (5/5/90)
22 hours Digital, 16 Analog (Standard 2000mAh) 16 hours Digital, 11 Analog (Optional 1500mAh) - Weight
10.86oz (308g) - Dimensions
4 5/8” x 2 5/32” x 1 15/32” (117 x 55 x 37mm) - Frequency Stability
± 0.5ppm - Antenna Impedance
50Ω - GPS
TTFF (Time to First Fix) Cold Start
50 Seconds
TTFF (Time to First Fix) Hot Start
5 Seconds
Horizontal Accuracy
10 meters - Receiver
Digital Sensitivity
0.22µV (BER 5%) - Analog Sensitivity
0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD) - Adjacent Selectivity
TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz - Spurious Response Rejection
TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz - Intermodulation
TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz - Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz - Rated Audio Power Output
0.5W - Rated Audio Distortion
≤3% - Audio Response
+1 to -3dB - Conducted
-57dBm - Transmitter
RF Power Output
VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W - FM Modulation
11K0F3E @ 12.5kHz 16K0F3E @ 25kHz - 4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW - Conducted/Radiated Emission
-36dBm 1GHz - Modulation Limiting
±2.5kHz @ 12.5kHz - FM Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz - Adjacent Channel Power
60dB @ 12.5kHz, 70dB @ 25kHz - Audio Response
+1 to -3dB - Audio Distortion
≤3% - Digital Vocoder Type
AMBE++ - Digital Protocol
ETSI-TS102 361-1,-2,-3 - Environmental
Operating Temperature
-22oF to +140oF (-30oC to +60oC) - Storage Temperature
-40oF to +185oF (-40oC to +85oC) - ESD
IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air - Dust and Water Ingress
IP54 Standard - Humidity
Per MIL-STD-810 C/D/E/F/G Standard - Shock and Vibration
Per MIL-STD-810 C/D/E/F/G Standard
