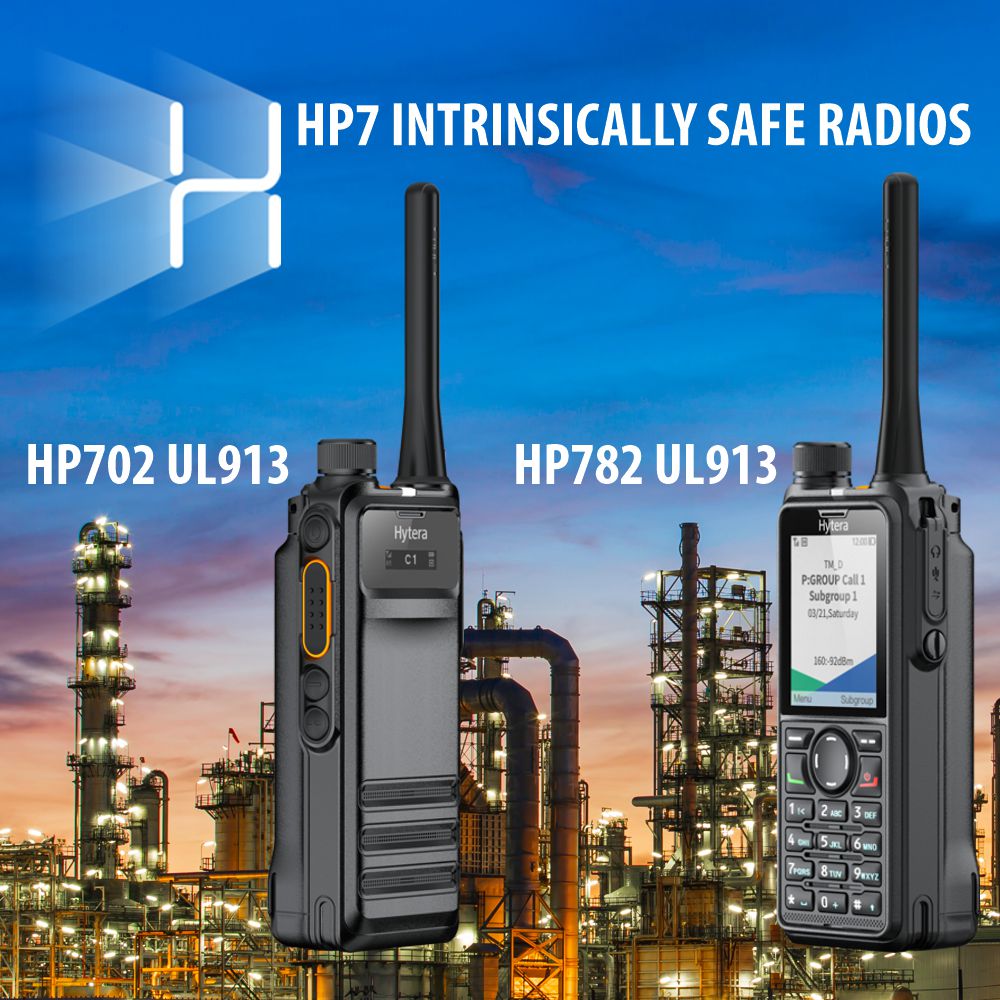

UL913 CERTIFIED
HP702 UL913 radios, batteries, and accessories are certified for use in hazardous areas with explosive gas and dust.
HIGHER LEVEL OF RUGGEDNESS
The HP702 UL913 radios are fully compliant with the IP68 and MIL-STD- 810 G standards. They are dustproof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The anti-magnetic speaker does not attract magnetic metal dust and shavings.
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through a large 36mm forward-facing optimized speaker that provides up to 93dB of loudness, and AI-based voice enhancement with a deep learning ability that can accurately extract voice from noise in real-time and decreases unwanted background noises as loud as 30db.
ENHANCED WORKER SAFETY
The HP702 UL913 radios are designed for worker safety with an easy access emergency button, emergency call, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.
LONGER BATTERY LIFE
The latest in lithium polymer technology is used to power the HP702 radios for excellent performance. The UL913 certified battery delivers a shift life of over 24 hours on high transmit power with a duty cycle of 5/5/90.
CLEAR AND BRIGHT DISPLAY
The HP702 UL913 features a 0.91-inch OLED display that shows the channel, signal strength, power status, power level, and BT status.
ENHANCED GPS LOCATION TRACKING
The HP702 UL912 radios with optional GPS can report current location information to other radios, a dispatcher, or third-party applications in real-time, enhancing the efficiency of visualized dispatch applications.
HIGHER SECURITY
Supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
BLUETOOTH AND MICROSD CARD
Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.
MULTI-SYSTEM OPERATION
The HP702 UL913 radios can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
EXTENDED COVERAGE AND CONNECTIVITY
The HP702 UL913 radios extend radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs.
GREATER CALLING FLEXIBILITY
A variety of calling modes provides the flexibility to communicate with any or all users. The HP702 UL913 radios support Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast the call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).
Programming - Radios are programmable and will require programming to work with an existing system. Software and programming cables are not included with the radio and must be purchased separately.
Do I need an FCC License - FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies. We can help with the FCC application process.
General
Frequency Range
UHF 350-470MHz , VHF 136-174MHz
Channel Capacity
1,024 Channels (512 Analog, 512 Digital)
Zone Capacity
64 Zones with 256 Channels per Zone
Channel Spacing
12.5kHz / 20kHz / 25kHz
Operational Voltage
7.4V (Rated)
Battery
2850mAh Li-Ion Polymer UL 913 certified
Battery Life (5/5/90)
HP702 UL913: 25 Hours, 29 Hours GPS disabled
Weight (with antenna and battery)
HP702 UL913: 13oz (369g)
Dimensions (H x W x D)
5 3/16” x 2 5/32” x 1 7/16” (132 x 55 x 36.5mm) without antenna
Frequency Stability
± 0.5ppm
Antenna Impedance
50Ω
Display
HP702 UL913: OLED 0.91” Display
Bluetooth
BT 5.0 BLE+EDR
GPS (5 Satellites visible at nominal 130dBm)
Time to First Fix Cold Start <60 Seconds (Typical TTFF)
Time to First Fix Hot Start <10 Seconds (Typical TTFF)
Horizontal Accuracy <5 meters
Receiver
Digital Sensitivity
0.18μV (BER 5%)
Analog Sensitivity
0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
Adjacent Selectivity
TIA-603: This email address is being protected from spambots. You need JavaScript enabled to view it., 70dB@20/25kHz ETSI: This email address is being protected from spambots. You need JavaScript enabled to view it., 70dB@20/25kHz
Spurious Response Rejection
TIA-603: </br<>70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
Intermodulation
TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
Hum and Noise
This email address is being protected from spambots. You need JavaScript enabled to view it., 43dB@20kHz, 45dB@25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1 to -3dB
Conducted Spurious Emission
<-57dBm
Transmitter
RF Power Output
VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
FM Modulation
11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm <1GHz, -30dBm >1GHz
Modulation Limiting
±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
FM Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power
60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response
+1 to -3dB
Audio Distortion
≤3%
Digital Vocoder Type
AMBE+2TM
Environmental
UL913 Certification for Radios, Batteries and Accessories
Class I, II, III, Division 1, Groups C-G,T4, -30° to 60°C / Class I, Division 2, Groups A-D,T4, -30° to 60°C
Operating Temperature
-22°F to +140°F (-30°C to +60°C)
Storage Temperature
-40°F to +185°F (-40°C to +85°C)
ESD
IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
Dust and Water Ingress IP68 Standard
IP68 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration
Per MIL-STD-810 C/D/E/F/G Standard
