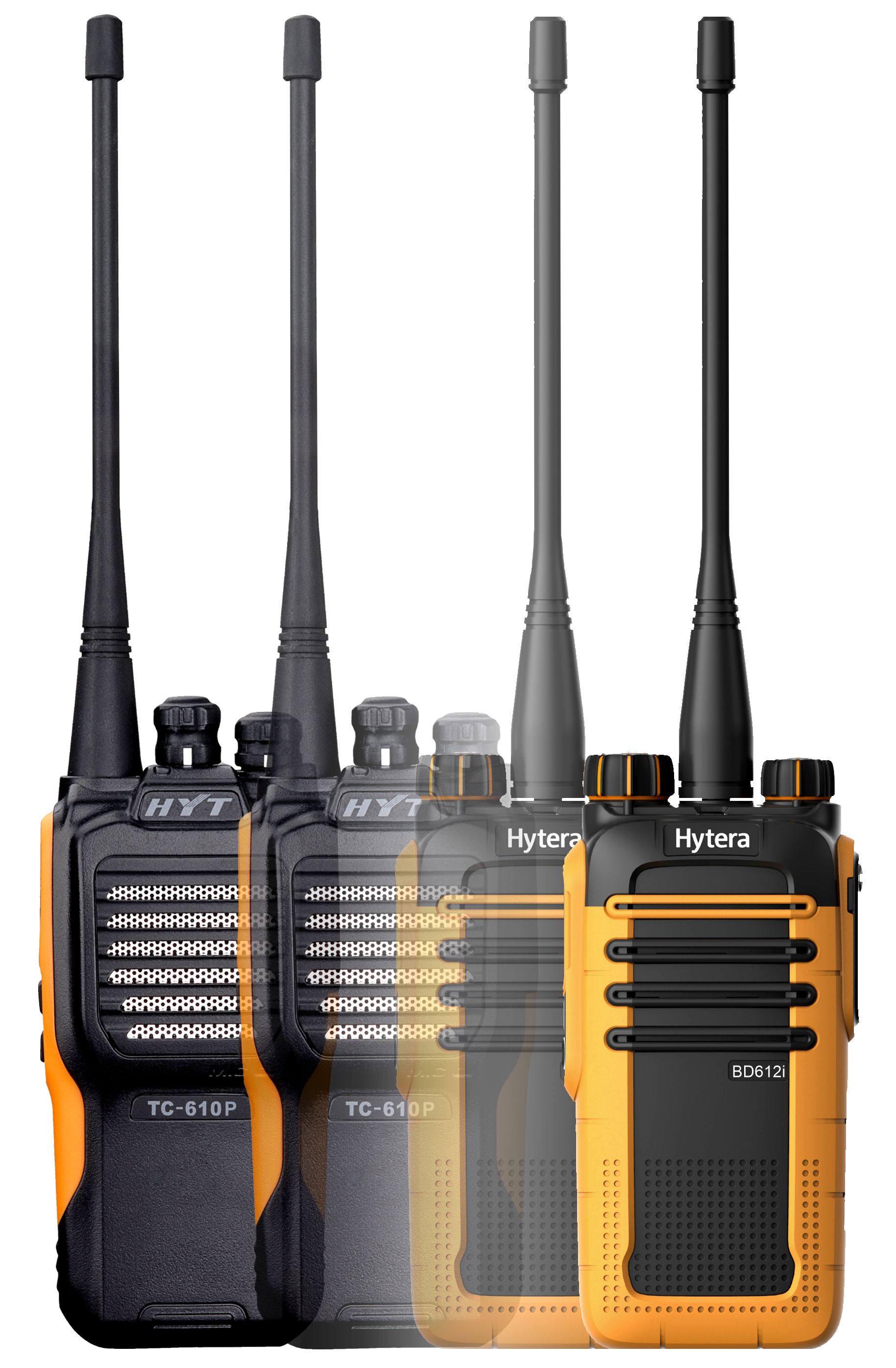

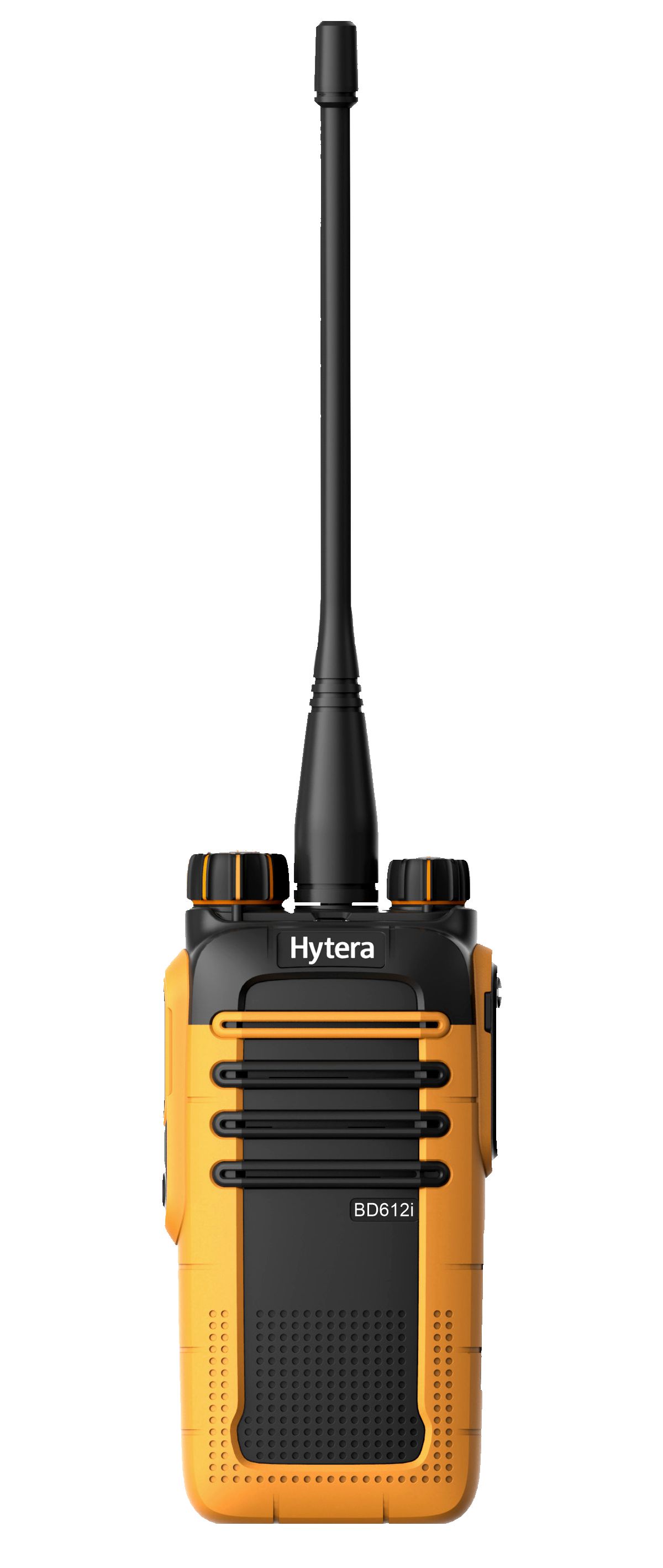

The BD612i digital radio is the next generation of the TC6 analog radios and improves on the legendary Hytera ruggedness, performance, and value.
• Built rugged for the most demanding environments
• Digital audio quality for clear calls on noisy job sites
• Powerful battery for reliable operation over long shifts
• Extended range to improve efficiency and reduce infrastructure costs
Standard Package Includes:
• Battery (1500mAh Li-Ion)
• Charger
• Antenna
• Belt Clip
• Wrist Strap
• User Guide
ERGONOMIC AND EASY TO USE
Tactile buttons for no-look PTT and emergency calls, and simple operation with channel and power/volume knobs. LED Indicator shows transmit and receive status in green and red lights.
ANALOG OR DIGITAL OPERATION
The BD612i operates in analog or digital mode and allows switching between the two modes for communication with analog radios. This enables a simple and cost-effective migration path to digital systems.
HIGH-QUALITY AUDIO
The audio equalizer adjusts low, mid, and high-frequency gain to provide the best audio performance in noisy job sites or quiet offices.
LONG-LIFE BATTERY
A powerful 1500mAh Lithium-Ion battery delivers up to 16 hours of operation, and an optional 2000mAh Lithium-Ion battery delivers up to 22 hours of operation.
RELIABLE AND DURABLE

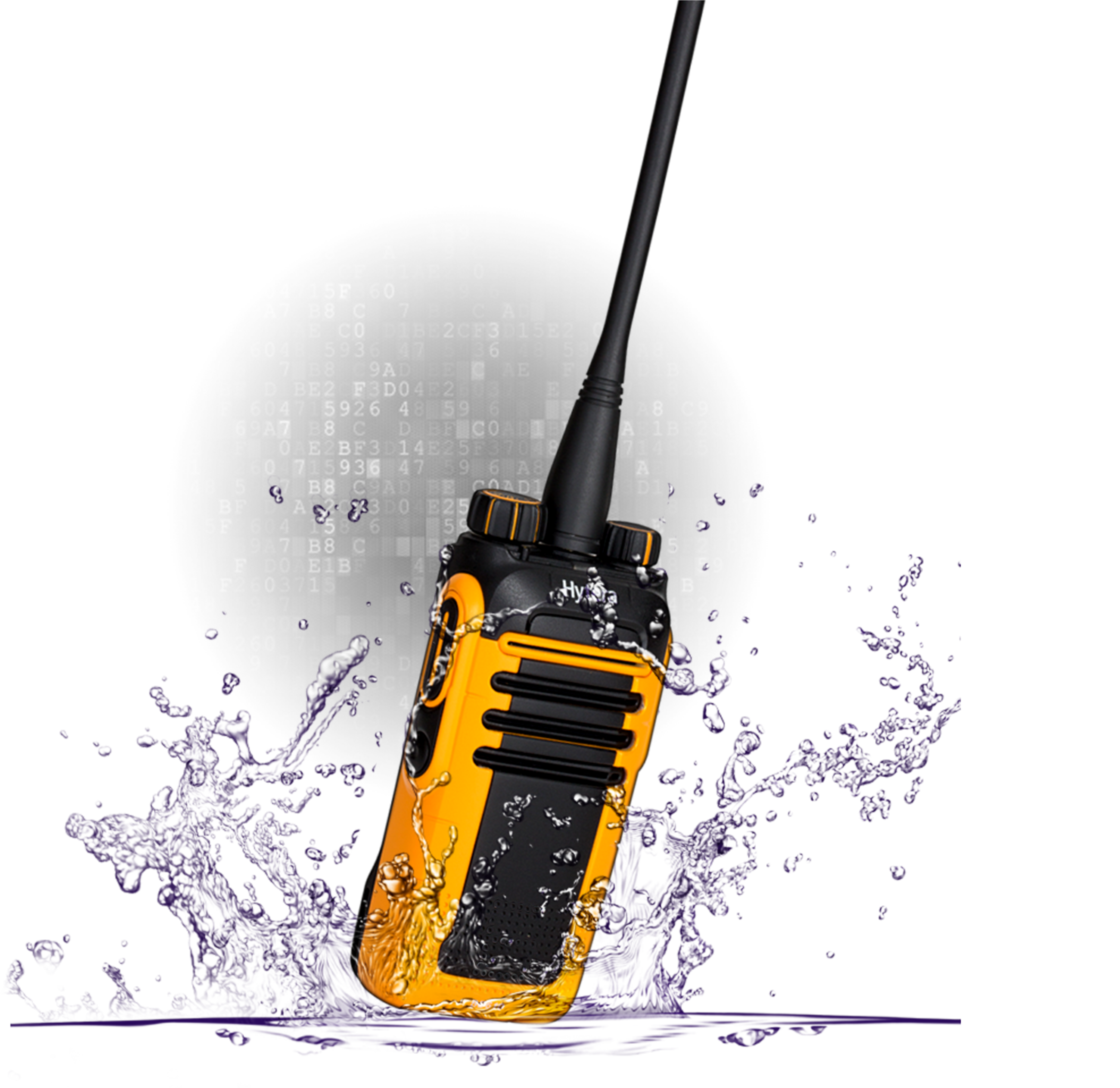

Compliant with MIL-STD-810-G for impacts and vibration, and IP66 rated for water and dust resistance
SCANNING
Allows listening to communications on other channels
EMERGENCY CALLING
One-touch Emergency Alarms can be sent to other radios with the programmable button to improve worker safety and emergency response time.
ANTI-INTERFERENCE
Digital encoding and error correcting reduce signal interference on the same frequency.
DMR
DMR signaling enables group calls, private calls, and all calls transmitting with PTT ID. Supports DMR Tier II repeaters to extend coverage.
Programming - Radios are programmable and will require programming to work with an existing system. Software and programming cables are not included with the radio and must be purchased separately.
Do I need an FCC License - FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies. We can help with the FCC application process.
Technical Specifications
General
Frequency Range
UHF: 400-470 MHz, VHF: 136-174 MHz
Channel Capacity
48 Channels (24 Analog, 24 Digital)
Zone Capacity
3 Zones with 16 Channels per Zone
Channel Spacing
25/12.5kHz
Operational Voltage
7.2V
Li-Ion Battery
1500mAh Standard, 2000mAh Optional
Battery Life (5/5/90)
1500mAh: 16 hours Digital, 12 hours Analog, 2000mAh: 22 hours Digital, 16 hours Analog
Weight
8.5 ounces (240g)
Dimensions
4 1/4” x 2 1/8” x 1 5/32” (108 x 54 x 29mm)
Frequency Stability
± 0.5ppm
Antenna Impedance
50Ω
Receiver
Digital Sensitivity
0.22μV (BER 5%)
Analog Sensitivity
0.22μV (Typical) (12dB SINAD) 0.4μV (20dB SINAD)
Adjacent Selectivity
TIA-603: 65dB @ 12.5kHz, 70dB @ 25kHz
Spurious Response Rejection
TIA-603: 70dB @ 12.5/25kHz
Intermodulation
TIA-603: 65dB @ 12.5/25kHz
Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤5%
Audio Response
+1 to -3dB
Conducted Spurious Emission
<-57dBm
Transmitter
RF Power Output
VHF High Power: 5W VHF Low Power: 1W UHF High Power: 4W UHF Low Power: 1W
FM Modulation
11K0F3E @ 12.5kHz 16K0F3E @ 25kHz
4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm <1GHz / -30dBm >1GHz
Modulation Limiting
±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz
FM Hum and Noise
40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power
60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response
+1 to -3dB
Audio Distortion
≤3%
Digital Vocoder Type
AMBE++
Digital Protocol
ETSI-TS102 361-1,-2,-3
Environmental
Operating Temperature
-22°F to +140°F (-30°C to +60°C)
Storage Temperature
-40°F to +185°F (-40°C to +85°C)
ESD
IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
Dust and Water Ingress
IP66 Standard
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration
Per MIL-STD-810 C/D/E/F/G Standard
