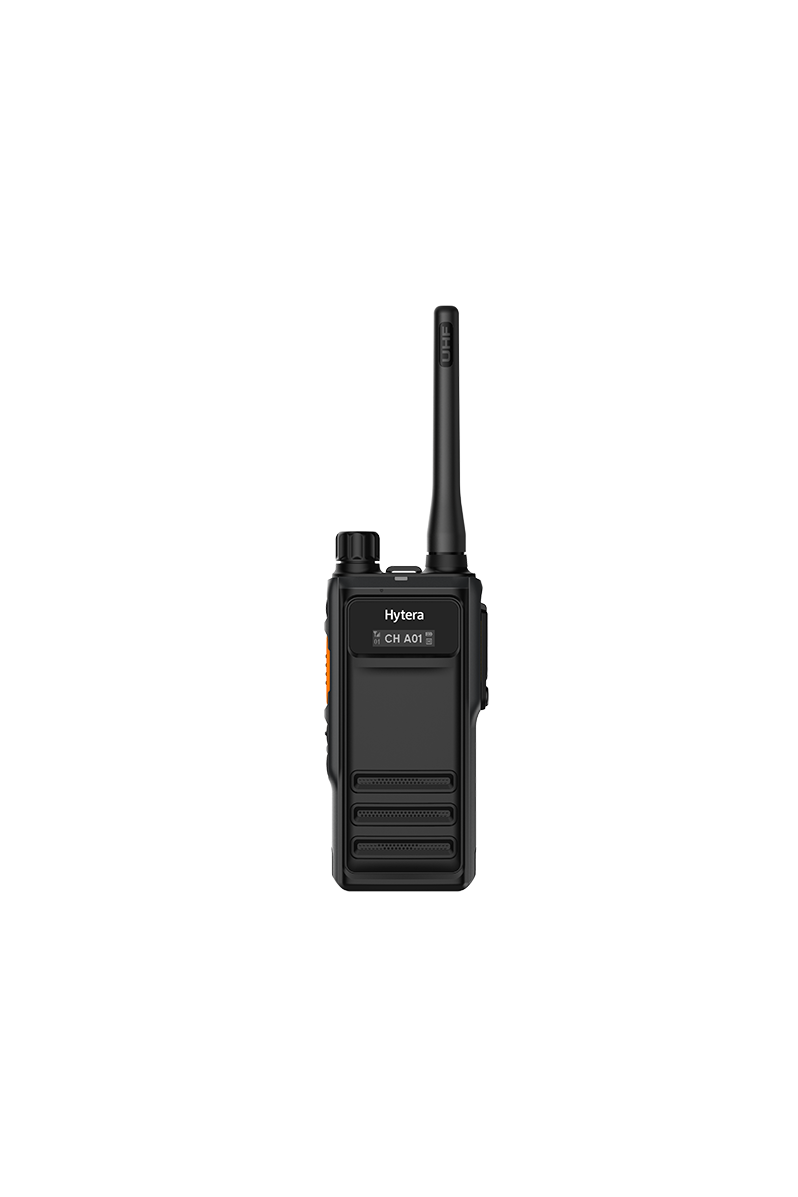

Hytera HP602 DMR Digital Portable Two Way Radio

Regular price: $525.00 Our price: $472.50 each

MhZ Version
2 Year Extended Warranty
Priority
Hytera Advanced Digital Encryption
Programming

+

The Hytera HP602 H-Series DMR radios are the next generation in creative style and functionality that elevates the industry standard in professional two-way radios. It is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness.

The HP602 features a one-line OLED display and delivers exceptional value with abundant features, GPS, a 20-hour Lithium Polymer battery, and industry-leading audio performance.

Standard Package Includes:

  • 2200 mAh Li-Ion Battery
  • Belt Clip
  • Antenna
  • Charger
  • Three Year Warranty

Features

THIN AND LIGHT
An optimized mechanical design with advanced materials and a lightweight lithium polymer battery delivers a compact radio that weighs less than 10 ounces.

LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through a large forward-facing speaker and AI-based voice enhancement with a deep learning ability that can accurately extract voice from noise in real-time and decreases unwanted background noises as loud as 30db.

ENHANCED WORKER SAFETY
The HP602 radios are designed for worker safety with a programmable emergency button, emergency call, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.

LONGER BATTERY LIFE
The latest in lithium polymer technology is used to power the HP6 Series radios for excellent performance. The battery is light and small, achieving a shift life of 20 hours on high transmit power with a duty cycle of 5/5/90.

HIGHER LEVEL OF RUGGEDNESS
The HP602 is fully compliant with the IP67 and MIL-STD- 810 G standards. It is dustproof, water resistant, and can stand up to drop shock testing at 2 meters. The HP6 Series anti-magnetic speaker does not attract magnetic metal dust and shavings.

CLEAR AND BRIGHT DISPLAY
The HP602 features a 0.91-inch OLED display that shows the channel, signal strength, power status, and power level.

ENHANCED GPS LOCATION TRACKING
The HP602 radios can report current location information to other radios, the dispatcher, or a third-party application in real-time, enhancing the efficiency of visualized dispatch applications. GPS data can be transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware costs.

HIGHER SECURITY
The HP602 supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.

BLUETOOTH
Built-in Bluetooth supports both audio and data and enables connectivity to wireless accessories.

MULTI-SYSTEM OPERATION
The HP602 can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.

EXTENDED COVERAGE AND CONNECTIVITY
The HP602 extends radio range through increased Tx power, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs. Two patented technologies and a voice buffer reduce packet loss during Rx handover for consistently clear calls and fewer dropped words.

GREATER CALLING FLEXIBILITY
A variety of calling modes provides the flexibility to communicate with any or all users. The HP6 Series supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast the call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks).

Programming - Radios are programmable and will require programming to work with an existing system. Software and programming cables are not included with the radio and must be purchased separately.

Do I need an FCC License - FCC licenses are required for many business radio frequencies. The biggest advantage to licensing your frequencies is exclusivity. Using common or default frequencies often means dealing with interference from others nearby who are using the same frequencies.  We can help with the FCC application process.

Specifications

Frequency Range
UHF:400-527 MHz, VHF 136-174 MHz
Channel Capacity
1,024 ( 512 Analog, 512 Digital)
Zone Capacity
64 Zones with 256 Channels per Zone
Channel Spacing
25/12.5/20KHz
Operating Voltage
7.7V
Battery
2200mAh (Li-Ion)
Battery Life (5/5/90 )
16 Hours with GPS on, 20 Hours with GPS disabled
Weight
9.35 oz
Dimensions
43/4” x 25/32” x 13/16” (122 x 55 x 30.5mm) (without antenna)
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω

Receiver

Sensitivity (Digital)
0.18μV / BER 5%
Sensitivity (Analog)
0.16μV (Typical) (12dB SIN AD) 0.18μV (12dB SIN AD)
Adjacent Selectivity
TIA-603: This email address is being protected from spambots. You need JavaScript enabled to view it., 70dB@20/25kHz ETSI: This email address is being protected from spambots. You need JavaScript enabled to view it., 70dB@20/25kHz
Spurious Response Rejection
TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
Inter-modulation
TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
Hum & Noise
This email address is being protected from spambots. You need JavaScript enabled to view it., 43dB@20kHz, 45dB@25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1 ~ -3dB
Conducted Spurious Emission
<-57dBm

Transmitter

RF Power Output
VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
FM Modulation
11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
4FSK Digital Modulation
12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm <1GHz, -30dBm >1GHz
Modulation Limiting
±2.5KHz @ 12.5KHz ±5.0KHz @ 25KHz
FM Hum & Noise
40dB @ 12.5KHz 45dB @ 25KHz
Adjacent Channel Power
60dB @ 12.5KHz, 70dB @25KHz
Audio Response
+1~3dB
Audio Distortion
≤3%
Digital Vocoder Type
AMBE+2TM

Environmental

Operating Temperature
-20°C~ +60°C
Storage Temperature
-40°C~ +85°C
ESD
IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air)
Dustproof & Waterproof
IP67 Standard
Humidity
Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration
Per MIL-STD-810 C/D/E/F/G Standard
