Icom’s license-free IP110H WLAN radio provides real-time voice communications over a wireless network to instantly connect teams. The IP110H utilizes Icom’s IP advanced radio system to deliver clear audio and full-duplex communications. The IP110H is a perfect match for locations with existing WLAN infrastructure such as hospitals, hotels, warehouses, tunnels, and more.
STANDARD PACKAGE
Belt clip (MBB1)
USB charger cable (OPC2480)
Owner’s manual
2 Year Warranty
Scalable System Using Wireless LAN Network
Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.
License-Free Communication
The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.
Communication with Dispersed Sites
When connected over the Internet VPN, a WLAN radio can communicate between dispersed sites.
Simultaneous TalkListen Function
The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.
TalkListen works with or without an external headset.
All, Group, Talkgroup, Individual and Telephone Calls
1000 mW loud audio from internal speaker
Optional Bluetooth® headset, VS-3

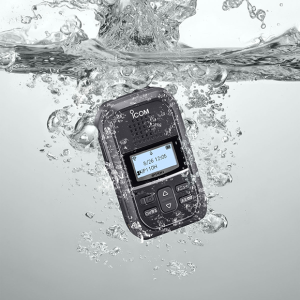

IP67 / IP54 waterproof and dust-tight
Battery can be charged through the USB Type-C™ cable
More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)
Other Features
-Audio is recorded for instant review
-Vibration alert function
-Motion/Stationary detection, man down and lone worker functions
-Over-the-Air programming
-Compatible with the IP100H WLAN radio
Wireless Standards
IEEE802.11 a/b/g/n/ac
Frequency Range
*1 2.4–2.4835 GHz, 5.15–5.35, 5.47–5.85 GHz
Security
WEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK
AF Output Power
1000 mW typ. (Internal SP) / 300 mW typ. (External SP)
Operating Temperature
–10°C to +60°C, +14°F to +140°F
Charging Temperature
0°C to + 60°C, + 32°F to + 140°F
Dimensions
57 × 96.9 × 25.1 mm, 2.2 × 3.8 × 1.0 in (W × H × D; Projections are not included)
Weight (approximate) 146 g, 5.2 oz
Operating Time
More than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio)
Charging Time
4 hours (With BC-257 and BC-228)
*1 Authorized frequency range and channels may differ depending on the country.
Applicable U.S. Military Specifications
Standard
MIL-810 G
Also meets equivalent MIL-STD-810 -C, -D, -E, and -F.
Ingress Protection Standard
Dust & Water
IP67 (Dust-tight and Immersion)
IP54 (Dust and Water resistant)
